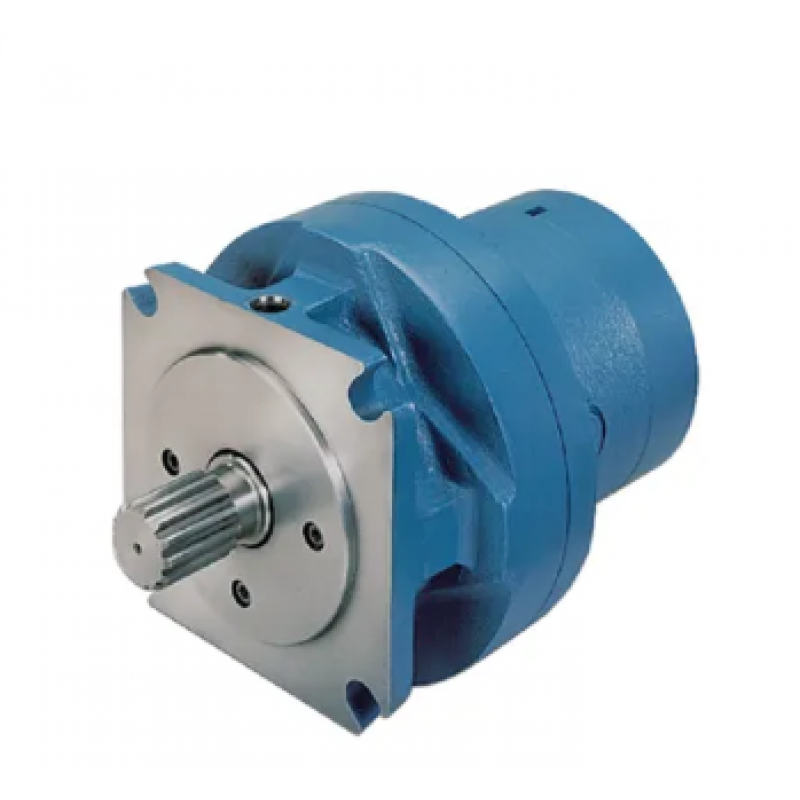

High Pressure Valve Plate Motor
Product Details:
Brand | Dynex |
Type | Hydraulic Motor |
Usage/Application | Rig Machines |
Power Source | Hydraulic Drive |
Material | Mild Steel |
Max Torque | 540 Nm at 350 Bar |
Rotating Direction | Bi-Directional |
Max. Operating Pressure | 560 Bar |
Shaft Option | Spline, Key Type |
DYNEX MF5000 SERIES VALVEPLATE MOTORSPressures to 8000 psi (560 bar). Torque to 4775 lb·in at 5000 psi
(540 N·m at 350 bar).- Rugged, heavy-duty design.
- Ideal for applications subject to pressure spikes, vibration, constant starting/stopping, and sudden direction reversals.
- Shaft Options: Standard spline, Optional keyed.
- Bi- rotational – shaft rotation is reversed by changing the direction of flow.
High Pressure Valve Plate Motor
