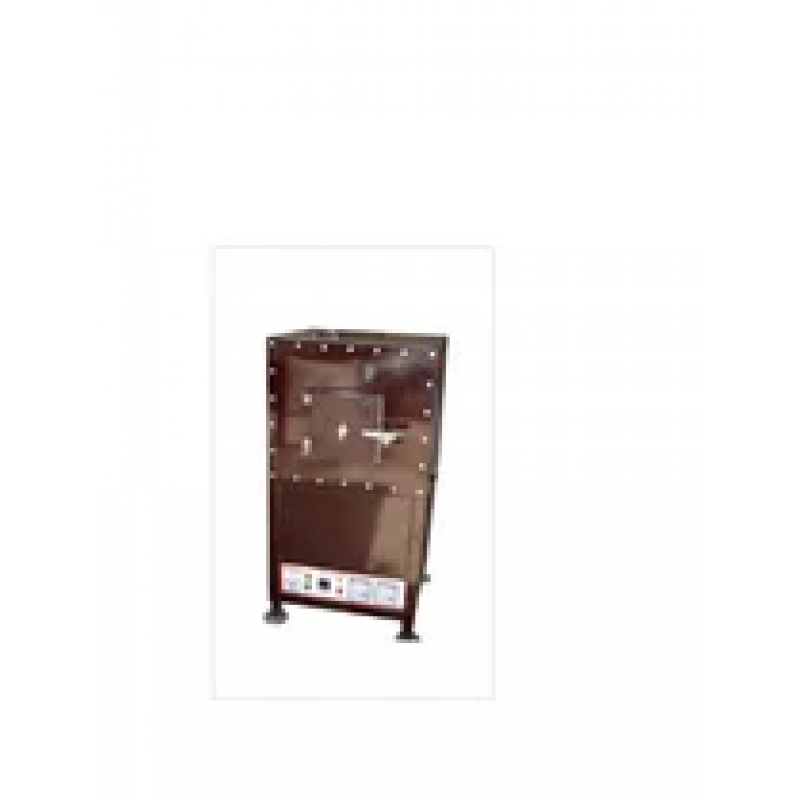

High Temperature Furnace
Click Image for Gallery
High Temperature Furnace
High Temperature Furnace
Product Details:
HEATING CHAMBER (WXHXD)
150mmx150mmx300mm
THYRISTON POWER DRIVE
Phase Angle control Thyristor Power drive. Along with voltage/current control and limit facility.
TEMPERATURE CONTROLLER CUM INDICATOR
Microprocessor Digital PID Temperature Indicator-cum-Controller
OR
Profile Digital Microcontroller having 2 PROGRAMMES each of 8 steps (total 16 steps of ramp/soak profile), for soft start to heaters which prolongs/enhances heater life.
TEMPERATURE RANGE
14500C Maximum, Working Upto 14000C
THERMOCOUPLE
Input Sensor:- Pt.Pt./Rh 30% Type "B" with Recrystalized alumina sheath connecting holder complete set.
THERMAL INSULATION
SUPER REFRACTORY and FIBROUS CERAMIC of appropriate grade and low heat capacity.
CONSTRUCTION
(Floor Model Type) Rugged body; height of the door from the floor is approx 4.5 feet with steel stand. Swing aside door, manually operated front side of the furnace.
COOLING FAN/AIR CIRCULATION
Attached with Furnace, Provided inside the control unit to protect COSTLY COMPONENT
ELECTRIC SUPPLY
Input Supply 230V AC, 50Hz
