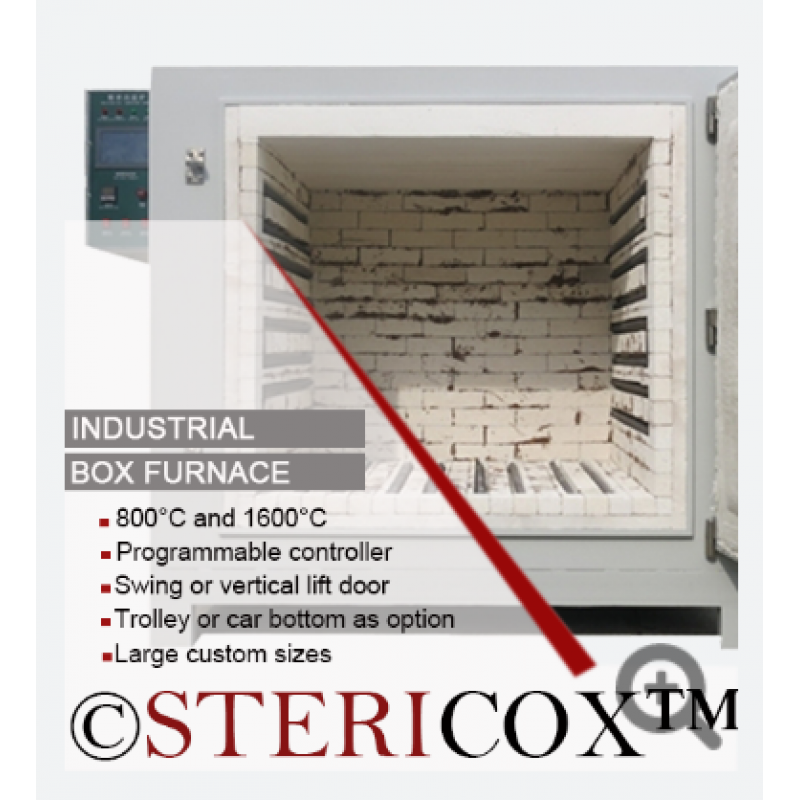

INDUSTRIAL FURNACE

STERICOX is an Industrial Manufacturer in India. We make large size industrial box furnaces with working temperature 1100°C, 1300°C and 1600°C for research institutes, steel companies, ceramic and glass manufacturing, electronics and semiconductor etc. These large size industrial box furnaces are especially designed for applications, where test volume is big and material is heavy. In order to meet diverse need of every industry, we make full featured industrial furnaces in application specific temperature and chamber size and control function. Tempering, aging, stress relieving, annealing and preheating are some of applications where industrial heat treatment furnace play important role.

No matter what you application is, engineering team at STERICOX knows how to meet specific need of your industrial process. We have experience, knowledge and technology to meet your project specifications at competitive price. You are welcome to contact for industrial box furnaces and medium sized car bottom furnaces.

FEATURES & BENEFITES

• Available in box or car bottom type
• 800°C to 1600°C temperature range
• Multistage temperature controller
• Controllable heating & cooling rates
• Two, Three and Four sides heating options
• Mechanical or automatic vertical lift door options

DETAILED DESCRIPTION

• Temperature range: Our industrial heat treatment furnaces are made with working temperature range from 600°C to 1600°C with accuracy of ±1°C.
• Heating element: We use only imported and high quality heating element in our industrial furnaces; depending upon temperature, we use Resistive Wire heating element, Silicon Carbide and MoSi2 rods. As standard, heating element are fitted left and right sides of chamber and as option, we can fit heating element on three sides or four sides where precise heating is prime requisite.
• Thermocouple: In order to measure temperature, thermocouple is important device and in our industrial furnaces we use K type, N type, S type and B type thermocouples.
• Temperature controller: As standard, we use 30 segments profile temperature controller; which, is ideal for running multiple temperature with different dwell times. It can control heating and cooling rates as required. Temperature recording and data logging are optional features offered at extra price.
• Chamber material: Heating zone or inner chamber is made with vacuum formed ceramic fiber material. As an option, we also use high alumina ceramic refractory bricks; where high stability and mechanical strength are required.
• Door: Furnace door can be horizontal swing type or vertical lift. Automatic electric vertical lift doors offer much comfort ability and safe working.
• External cabinet: Housing of our industrial furnaces is made of thick steel sheets fabricated by CNC and laser machines for elegant finish. Power coating paint is done for corrosion resistance feature and enhanced surface finishing.
• Car bottom: Car bottom is much accepted technology for loading and unloading bulk and heavy materials in furnace. It comprises of electrical and mechanical systems with heavy duty wheels.

TECHNICAL SPECIFICATIONS

Max. Temperature	1200°C	1400°C	1700°C
Working Temperature	1100°C	1300°C	1600°C
Thermocouple	N Type	S Type	B Type
Heating element	Resistive wire	Sic rods	MoSi2 rods
Temperature controller	30 segments profile controller
Heating rate	Up to 15°C per minute
Chamber material	High alumina ceramic fiber
External housing	CNC processed steel sheet w/ powder coating paint
Door	Manual swing type
Power supply	415 Volts 50 Hz
Optional	Ceramic refractory bricks chamber 3 sides or 4 sides heating Silicon carbide plate & Pillars Car bottom / trolley Automatic lifting door
Chamber sizes (W x D x H)	400 x 600 x 400 mm 600 x 600 x 600 mm 600 x 600 x 600 mm 800 x 1000 x 800 mm 900 x 900 x 900 mm 1000 x 1200 x 1000 mm 1200 x 1500 x 1200 mm 1500 x 2000 x 1000 mm
