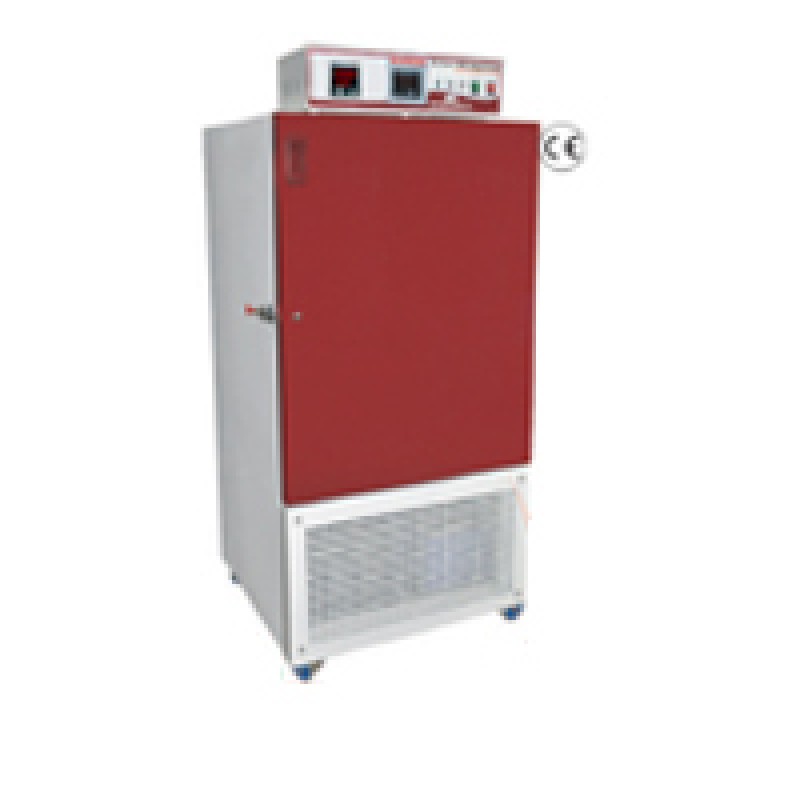

B.O.D. INCUBATOR (HUMIDITY CONTROLLED) REW-121(HC)
Product Details :
- Germinators
are useful for seed testing, biological studies, forestry research works
etc.
- With a solid see thru double walled door and a full
view inner plexi-glass door enables inspection and monitoring of inner
chamber specimens without distributing the process temperature.
- Excellent quality magnetic gum packing door gasket
for external door.
- User oriented design of shelves makes you adjust
each space of shelves without difficulty.
- Forced air circulation at triple walled back by
durable coaxial blower, maintains optimum temperature uniformity and
homogeneity.
- High grade PUF Insulation between outer and inner
chamber for minimal thermal losses.
- Caster wheel mounted for easy portability.
- Front double walled door is provided with lock and
key arrangement.
- Door operated illumination lamp is fitted inside
the chamber for easy visibility.
- Finned tube evaporator facilitates uniform and
faster cooling effects.
- Safety Thermostate to prevent overheating.
CONSTRUCTIONAL AND SALIENT FEATURES
- Front double walled door is provided with lock and
key arrangement.
- Door operated illumination lamp is fitted inside
the chamber for easy visibility.
- Finned tube evaporator facilitates uniform and
faster cooling effects.
- Safety Thermostate to prevent overheating.
MODEL | #REW-4 (HC-LCD) | #REW-6 (HC-LCD) | #REW-10 (HC-LCD) | #REW-12 (HC-LCD) | #REW-15 (HC-LCD) | #REW-16 (HC-LCD) | #REW-18 (HC-LCD) | #REW-20 (HC-LCD) |
Dimensions (mm) | 455x410x610 | 455x410x610 | 570x550x875 | 650x580x900 | 700x640x900 | 700x640x970 | 700x640x1100 | 700x700x1100 |
Capacity | 112 trs | 171 ltrs | 280 ltrs | 340 ltrs | 420 ltrs | 450 ltrs | 500 ltrs | 560 ltrs |
Volume | 3.0 Cuft | 4 Cuft | 6.1Cuft | 10Cuft | 12Cuft | 16 Cuft | 18 Cuft | 20 Cuft |
No. of shelves | 4 | 6 | 8 | 14 | 14 | 14 | 16 | 16 |
MOC Outer | Powder coated CRC Steel Sheet | |||||||
MOC Inner | Chamber and trays made of Stainless Steel (SS-304) | |||||||
Type | Forced Convection Type | |||||||
Freezer Compressor | Hermetically sealed air cooling compressor system | |||||||
Temperature Range | 5OC to 60 OC | |||||||
Accuracy | +1OC | |||||||
Humidity Creation | Humidity generation (Steam Type) | |||||||
Humidity Range | 5% above ambient from 40% to 95% RH at cool temperature | |||||||
Humidity Accuracy | +3% RH | |||||||
Controller | Microprocessor based temperature Data Logger with 9 segments to enable users to control nine different variation and repetition of temperature and humidity according to its conditions. | |||||||
Electric Supply | 220/230V AC, 50/60 Hz |
OPTIONS
Exterior
illumination with fluorescent tubes. 0-24 hrs cyclic
timer to control cyclic illumination conditions. Communication
port with interface and data cable to download data to your PC.
Exterior illumination with fluorescent tubes.
