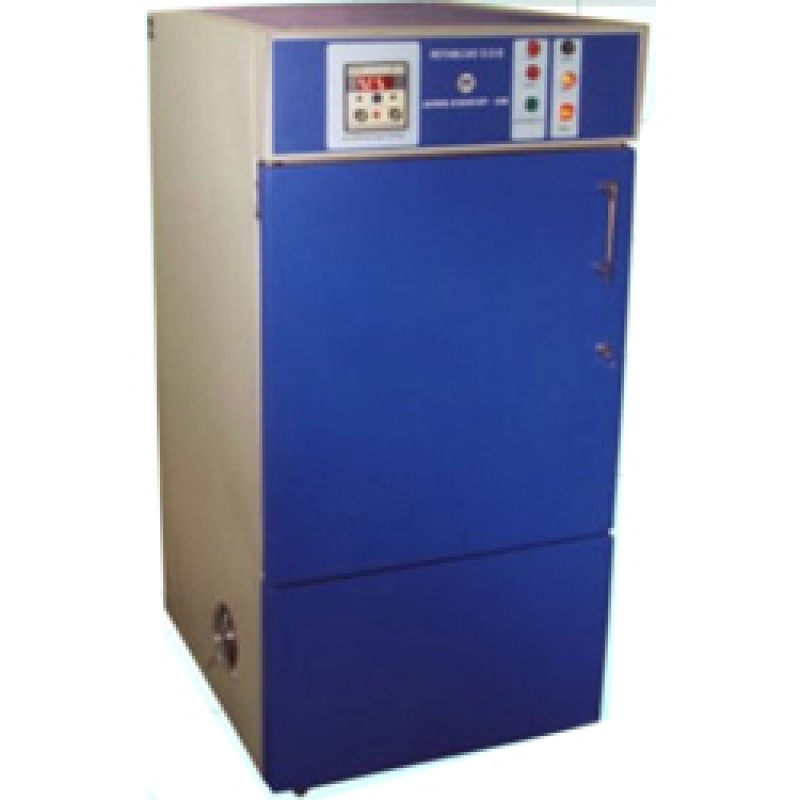

B.O.D. Incubator GMP Model
Features :
- Designed specially biological Oxygen demand determination and other application like general incubation, serum studies and enzyme assays tests.
- Castor wheel mounted cabinet is double walled.
- Inner chamber made of Aluminium / S.S Outer chamber made of M.S with powder coating.
- Full length inner glass / acrylic door permits inspection of specimens with out disturbing the temperature.
- Temp. controlled by Digital Temp controlled cum indicator.
- Temprature range 5 degree c to 50 degree c with an accuracy of 0.5 degree c.
- This unit is fitted with door operated illumination lamp inside the chamber.
- Equipped with vermitically sealed compressor.
- Air Circulation Fan for maintaining temp. Uniformity through out the chamber.
- Flush Fitting insulated double walled door has magnetic gasket.
- The Chamber is provided with modular removable shelves made of S.S for complete flexibility is use.
- Inner Chamber is fitted with refrigeration evaporator, heater and Air Circulator for creating positive.
- Air flow through out the inner chamber for Temp. Uniformity.
- To work at 230V A.C only.
S No | Size | Dimensions |
1 | 3 Cu. Ft (90 Ltr) | 45*45*50 Cm |
2 | 6 Cu. Ft (170 Ltr) | 50*50*70 Cm |
3 | 10 Cu. Ft (280 Ltr) | 55*55*90 Cm |
4 | 12 Cu. Ft (320 Ltr) | 60*60*90 Cm |
