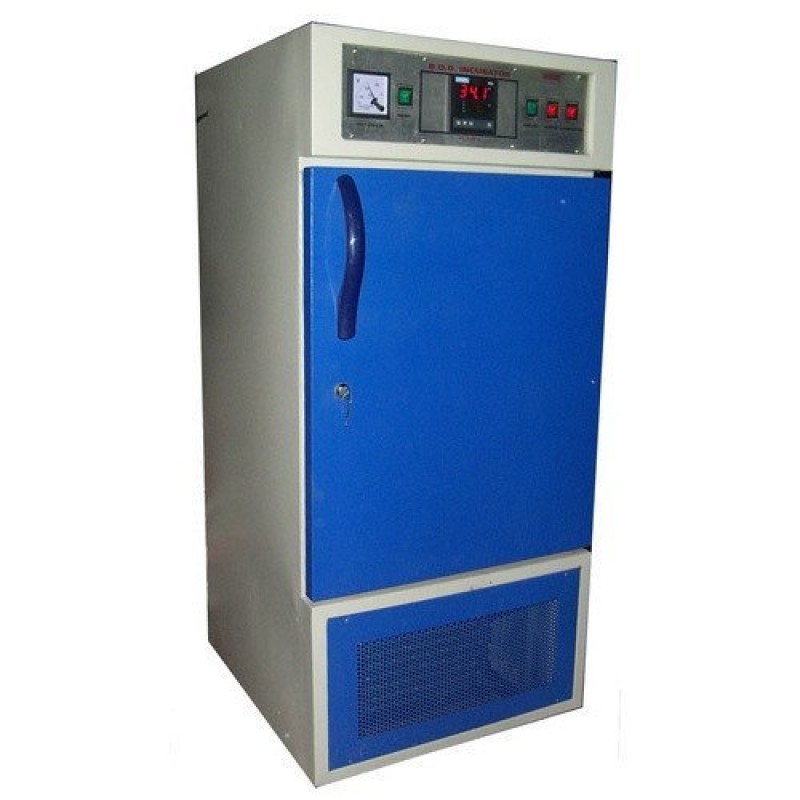

BOD Incubator
Product Details :
Temperature Range | 10 degree c to 60 degree c |
Humidity Range | 40% to 95% RH |
Humidity Accuracy | +/- 2.5% RH |
Temperature Uniformity | +/- 0.5 degree c |
Temperature Accuracy | +/- 0.1 degree c |
Humidity Uniformity | +/- 3% RH |
Product Specification
- Storage Capacity : 112 Litre
- Capacity 4.0 cft
- Minimum Order Quantity 1 Piece
Product Description
BOD incubator
- Double wall construction. Inner chamber made of richly anodized aluminum/stainless steel sheet and Exterior made out of thick mild steel sheet duly finished in white stoving enamel paint Supplied with two/three removable perforated shelves.
- Outer double wall door is provided with a magnetic gasket and lock & key arrangement. The inner door made out of clear acrylic sheet allowing inspection of material in the chamber without distributing the chamber temperature.
- The gap between the wall of equipment is filled with glass wool for temp. Insulation. The cabinet is mounted on casters.
- Temperature is controlled by a sensitive thermostat from 5o C to 50o C +- 1o C. for lower temperature.
- Working a standard cooling unit with a sealed compressor with the protective device has been provided below the chamber for safe and efficient working. The heating arrangement has been made within the chamber for higher temp.
- Working the temp. can be regulated within the range by means of a high precision double action thermo-regulator. Inner air circulating system is provided to achieve the uniform temperature in the whole chamber.
- A control panel is provided with various indicators, on-off switch, L shaped thermometer. Supplied with cord and plug etc. the equipment is workable on 220 V AC 50 Hz single phase.
