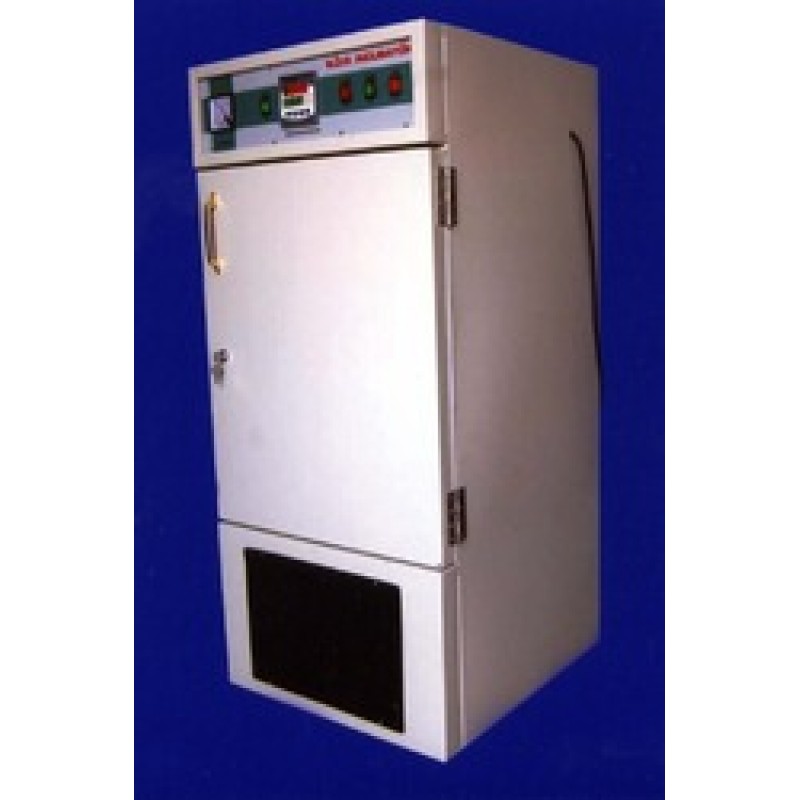

BOD Incubator

• Most versatile BOD Incubator for Biochemical Oxygen Demand determinations.
• Caster wheel mounted cabinet is double walled, outer body made of GI sheet, properly powder coated and inside chamber made with choice of Aluminum or Stainless steel sheet.
• The gap between the inner and outer wall is filled with thermal glass wool insulation.
• Triple walled back side of the unit is provided with an air circulation fan, the air circulation system consists of a TEFC branded motor with long shaft and ball bearings coupled with dynamically balanced impeller type blower to get powerful air circulation in the chamber and ensures even temp: in the cabinet.
• Provided full view perspex door inside, which makes it possible to inspect the specimens without disturbing the cabin temperature.
• Supplied with shelves and adjustable shelf position.Equipped with C.F.C. free compressor and refrigerant.


Capacity Temp.:

• Range: 85 ltr 5 C to 60 C (Chamber Aluminium)170 ltr 5 C to 60 C (Chamber Aluminium)280 ltr 5 C to 60 C (Chamber Aluminium)340 ltr 5 C to 60 C (Chamber Aluminium)85 ltr 5 C to 60 C (Chamber Stainless steel)170 ltr 5 C to 60 C (Chamber Stainless steel)280 lt 5 C to 60 C (Chamber Stainless steel)340 ltr 5 C to 60 C (Chamber Stainless steel)

Other details:

• Outer body made of stainless steel 304 quality sheet with GMP standard also available.

• Suitable voltage stabilizer is to be used to protect the equipment from voltage fluctuation.

• Non use of stabilizer will render the warranty of the equipment in valid

• Stabilizer rating:- 1K.V.A. for 85 and 170 ltr. 2K.V.A. for 280 and 340 ltr.

• Temp: Range 5 C to 60 C,

• Controlled by digital display temp:indicator cum controller with built in on delay,

• Accuracy+/- 0.5 C,

• Suitable to work in 220 V AC supply
