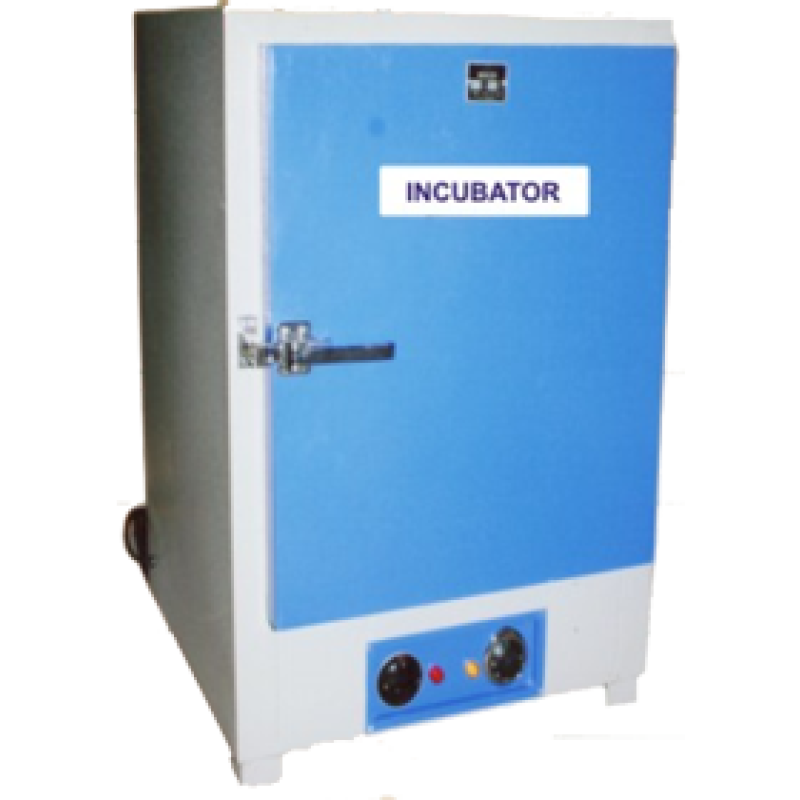

Bacteriological Incubator
Specifications :
- Incubators are sturdy double walled units.
- Inner chamber made of S.S and outer made of Mild Steel with Powder coating.
- Gap between the walls fitted with glass wool insulation to avoid heat loses.
- Heating elements are made of high grade chrome plated nicrome wire.
- Temp. is controlled by thermostat.
- Temp range 5 degree c Above ambient to 60 degree C and Accuracy:+- 2 degree c.
- Air Ventilations are provided on the top of the unit to remove the hot gases / fumes.
- In Lab type incubators heaters are placed in the bottom side of the unit.
- All the control switches & pilot lamps are fitted on the front panel.
- Trays should be supplied with G.I wire mesh.
| STANDARD SIZE AVAILABLE | ||
| S. No. | Size in inches | (HXWX D) |
| 1 | 12" X12" X12" | (30 x 30 x 30 Cm.) |
| 2 | 14" X14"X14" | (35 x 35 x 35 Cm.) |
| 3 | 18" X18"X18" | (45 x 45 x 45 Cm.) |
| 4 | 18" X18"X24" | (45 x 45 x 60 Cm.) |
| 5 | 24" X24"X24" | (60 x 60 x 60 Cm.) |
| 6 | 18" X24"X36" | (45 x 60 x 90 Cm.) |
| 7 | 24" X24"X36" | (60 x 60 x 90 Cm.) |
