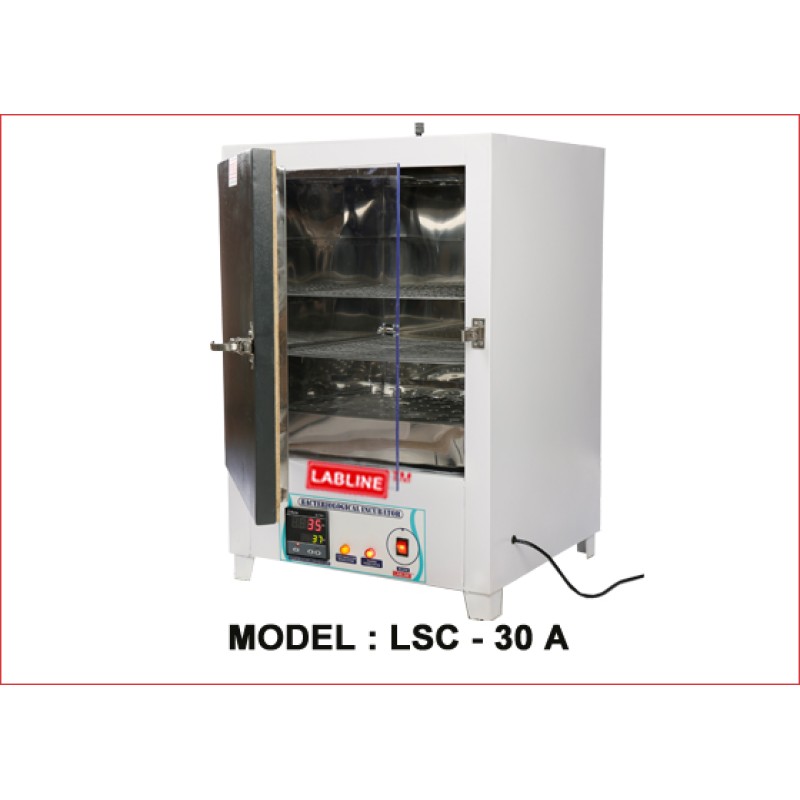

Bacteriological Lab Incubator

Unique Features :

• Ergonomic Design
• Easy to use
• Negligible Maintenance
• High-Temperature Accuracy

Construction :

• Double-walled construction, Inner chamber made of Mild Steel / Stainless Steel 304 Q & exterior made of G.I. Sheets powder coated.
• The gap between the walls is filled with special grade glass wool for proper insulation to avoid heat loss and thereby saving energy.
• Inner door made of Acrylic to see through the chamber & external metal door is fully insulated with S. S. lock, hinges.
• Air Ventilation is provided on the top of unit to remove hot gases/fumes.
• Supplied with galvanized wire mesh shelves.

Technical Data :

• Temp. Range : 5 0C above ambient to 600C
• Temp. Accuracy : With Thermostat :  20C or Digital :  0.50C
• Temp. Control : Temperature Controlled by Thermostat OR
• Digital Temp. : Micro-processor based Auto Tune P.I.D Digital Temperature Controller with PT 100 sensor & Resolution 0.10C . Dual display one for process value (PV) & the other for Set Value of Tempreture (SV)
• Power Supply : 230 Volts A.C 50 Hz Single phase

Heating Element :

• Heating is by specially designed heaters made of special grade Nichrome wire (ISI Approved) which is fitted at the bottom of the oven.

Optional Accessories :

• Digital Temperature Controller - Micro-processor based Auto Tune P.I.D Digital Temperature Controller with PT 100 sensor & Resolution 0.1 0C. Dual display one for process value (PV) & the another for set value of temperature (SV)
• Motorised Air circulation Blower for Universal Tempreture.
• S.S Trays.
• Digital Temperature controller Cum Indicator with Timer
• Safety Thermostat.
