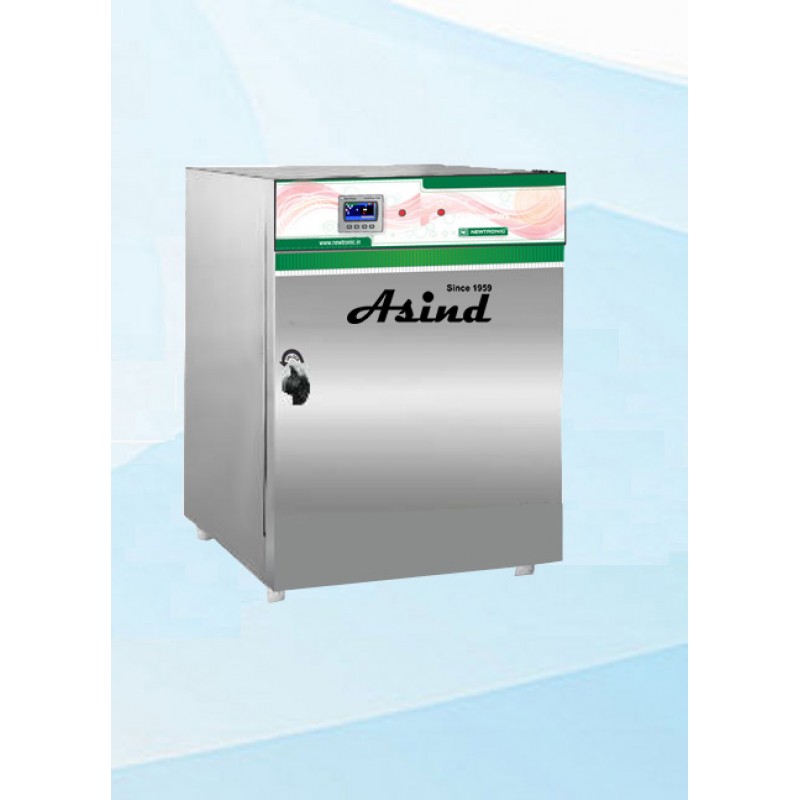

CARBON DIOXIDE INCUBATOR
Product Details:
Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber. Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various laboratories, industries, R & D labs etc.
- With the solid double walled door, a full view inner plexi-glass door enables inspection of specimens inside the chamber without disturbing the process temperature
- The excellent quality of magnetic gum packing for the external door.
- User-oriented design of shelves makes you adjust each space of shelves without difficulty.
- With forced air circulation at triple walled back, it maintains optimum uniformity of distribution of temperature.
- High grade Polyurethane Foam (PUF) insulation between outer and inner chamber for minimal thermal loss.
- Caster wheel mounted exterior cabinet is made of steel sheet duly powder coated.
- Inner chamber and trays are made of stainless steel sheet (SS-304 grade).
- Front double walled door is provided with lock and key arrangement.
- Door operated illumination lamp is fitted inside the chamber for easy visibility.
- Safety thermostat to prevent overheating.
- Fitted with MICROPROCESSOR BASED DIGITAL TEMPERATURE INDICATOR-CUM-CONTROLLER to control the temperature from 5°C to 60°C ±0.5°C or from Ambient to 50°C ±1°C.
TECHNICAL SPECIFICATION INFORMATION:-
MODEL NO | ASI-CO2-6.1 | ASI-CO2-10 | ASI-CO2-4 | ASI-CO2-6.1-2 | ASI-CO2-10-3 | ||||
---|---|---|---|---|---|---|---|---|---|
Inner Dimensions (WxDxH)mm | 505X415X830 | 570X550X875 | 455X410X610 | 505X415X830 | 570X550X875 | ||||
Capacity | 171 ltrs | 280 ltrs | 112 ltrs | 171 ltrs | 280 ltrs | ||||
Volume | 6.1 Cuft | 10 Cuft | 4 Cuft | 6.1 Cuft | 10 Cuft | ||||
No. of Shelves | 2 | 3 | 2 | 2 | 3 | ||||
Temperature Range | Ambient 50OC to 70OC | ||||||||
Type | +100ºC to 50ºC | ||||||||
MOC (Inner) | Galvanized Steel Sheet OR Stainless Steel Sheet (Option) | ||||||||
Power Supply | 220/230V AC, 50/60Hz |
