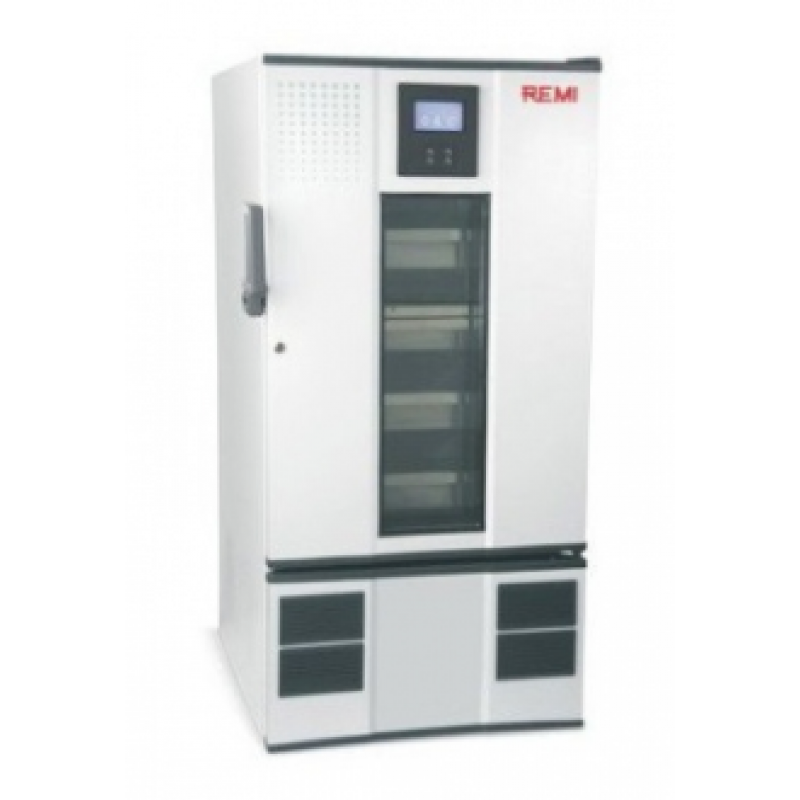

Cooling Incubator
Product Details:
Brand: Remi
Product Code: Cooling Incubator
Cooling Incubators are designed for applications in pharmaceutical, microbiology, biotechnology, chemical & research labs. These chambers are used for BOD test culture of bacteria, microorganism, tissue culture, incubation, immunological work & storage of vaccines etc. These incubators are available in standard & GMP versionsSALIENT FEATURESTemperature range 0°C to 60°C Unique design o..
Cooling Incubators are designed for applications in pharmaceutical, microbiology, biotechnology, chemical & research labs. These chambers are used for BOD test culture of bacteria, microorganism, tissue culture, incubation, immunological work & storage of vaccines etc. These incubators are available in standard & GMP versions
SALIENT FEATURES
- Temperature range 0°C to 60°C Unique design of thermal barrier for better energy efficiency
- Machine filled PUF insulation to eliminate void pockets
- Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber
- Heating by long life SS tubular heaters
- Chamber calibration port on side
- Adjustable trays
- Hermetically sealed Compressor with CFC free refrigerant
- High temperature safety cut off & alarms for high / low set parameters
- Sensor failure alarm
- Electrical circuit breaker
- Time delay for compressor switch on
- Overload cut off relay for compressor
- Rounded inner chamber for easy cleaning
Attractive door profile
- Microprocessor controller with LED display of Temperature with set, process value & audio visual alarm (standard)
- CLS (Custom Logical Safe) control system with logical safety devices.
Optional
- 4″ LCD display with additional features (Details overleaf)
- Touch screen display ( TFT ) with additional features(Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
LCD DISPLAY
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain temperature in case of sensor failure
- Battery Backup for Temperature Controller
- Auto tuning of controller
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Power failure and resumption recorded with date and time
- Settable High / low alarm points
- Memory for storage of upto 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- Alarm on equipment / output for remote alarm
- PC communication through RS-485 with data acquisition software
- Remi Datasoft Data acquisition software complying to 21 CFR part “Datasoft”™ 11 as per USFDA Guidelines (optional)
REMI ‘DATA SOFT’
- Multiple level alpha numerical password with password ageing
- Secured audit trail report
- Alarm report with mention of alarm condition
- Mean Kinetic Temperature able to be calculated for any days& alarm deviation report
- Reports in graphical and tabular form
- Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
- Multi chamber data acquisition on single software
- Communication through RS 485 / TCP IP
- GSM Mobile Alert for six Numbers
TOUCH SCREEN DISPLAY
- 7 inch big colour touch screen
- PLC (Programable logic controller)
- Memory of 10,000 records
- Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval
- PC communication through REMI Datasoft
- Ethernet port
- Battery backup in case of power failure for display, alarms & off-line data logging (optional)
- Programmable cyclic timer for controlling illumination conditions
OPTIONAL ACCESSORIES
- Chamber illumination with the help of 2 Nos. fluorescent tubes
- Chamber illumination with 2 Nos. ultra violet lights
- 24 hours Cyclic Timer for regulating illumination conditions
- Data logger for 8 Point temperature recording with sensor printer interface and software
- Seven days circular chart recorder
- Software as per 21 CFR Part 11 requirements
- PLC Based Control System with HMI Touch Screen
- Biometrics Magnetic Door Access for Secured Door opening with software to maintain log
- Validation (mapping) consist of one cycle for temperature at any one set point for 24 hours on empty and loaded condition
- Standby Refrigeration System
- GSM alert through SIM card
| Technical Specifications | |||||||
| CI-6 Plus | CI-10 Plus | CI-12 Plus | CI-16 Plus | CI-19 Plus | CI-28 Plus | CI-35 Plus | |
|---|---|---|---|---|---|---|---|
| Internal Volume (Litres) | 200 | 280 | 370 | 450 | 540 | 800 | 1000 |
| Number of tray | 2 | 3 | 4 | 5 | 6 | 6 | 7 |
| Internal Dimensions W x D x H (mm) | 660 x 655 x 450 | 660 x 655 x 650 | 660 x 655 x 850 | 660 x 655 x 1050 | 660 x 655 x 1250 | 800 x 800 x 1250 | 800 x 800 x 1580 |
| External Dimensions W x D x H (mm) | 800 x 1095 x 1020 | 800 x 1095 x 1220 | 800 x 1095 x 1420 | 800 x 1095 x 1620 | 800 x 1095 x 1820 | 960 x 1370 x 1950 | 960 x 1370 x 270 |
| Temperature Range & Accuracy | 0°C to 60°C, ± 0.1°C | ||||||
| Temperature control | Microprocessor with PT-100 sensor | ||||||
| Display | 1″ – 7 Segment, Big Size LED | ||||||
| Power Failure Alarm | Visual Alarm | ||||||
| Door Open Alarm | Audio Visual Alarm in case door open for over one minute | ||||||
| Temperature Variation Alarm | Set Temperature ± 2°C, Audio Visual Alarm | ||||||
| Illumination | 8 Watts Fluorescent Tube | ||||||
| Internal Body Material | Stainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models) | ||||||
| External Body Material | Powder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) | ||||||
| Insulation | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | ||||||
| Noise Level | Less Than 65 db(A) | ||||||
| Recommended Voltage Stabilizer | VS-02 | VS-02 | VS-02 | VS-03 | VS-03 | VS-06 | VS-06 |
