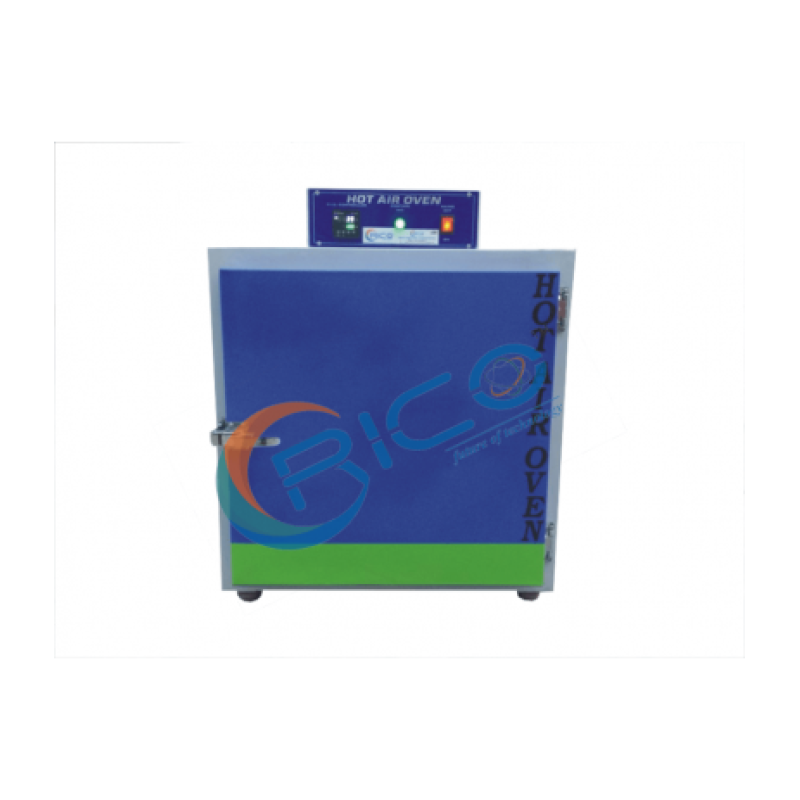

GRAVITY CONVECTION OVENS
Product Details:
Special Features

• Temperature ranges up to 250oC.
• Isolated, internal and external surfaces untouched

• Easily accessible interior for maintenance and cleaning
• Full opening door hinges on right side (left side optional)

• Microprocessor based temperature controller.
• Temperature chart recorder / printer for printing chart (optional)

• An automatic over temperature alarm ensures that your samples are always safe.
• RS 232/485 interface. (Alternative)

• Universal Digital Data Recorder System (optional)
• HMI + PLC for temperature control, data recording (optional)

• USB port for PC connectivity (optional)

Temp. Range	Ambient +5°C to 250°C
Temp. Accuracy	+ / - 2°C
Temp. Uniformity	+ / - 1°C
Controls	PID Controller
Temp. Display	LED Display
Sensor	PT-100
Heating Element	Nichrome wire / Kanthal A1
Safety device	- Over temperature protection - Electric leakage breaker
Chamber MOC	Exterior: MS powder coated Interior: 304 stainless steel
Insulation	Mineral Wool
Doors	Solid doors w/ silicone rubber gasket & lock
Shelves	2 - 3 nickel chrome plated wire shelves (detachable)
Optional Accessories	- Dot Matrix Printer interface - Temperature chart recorder - PLC Controller - Stainless steel outer cabinet - Audio / visual alarm - Heating Thermostat - NABL Certification - Thermometer  - Stand or wheeled trolleys
Power Supply	220/240 Volts AC 50/60 Hz
