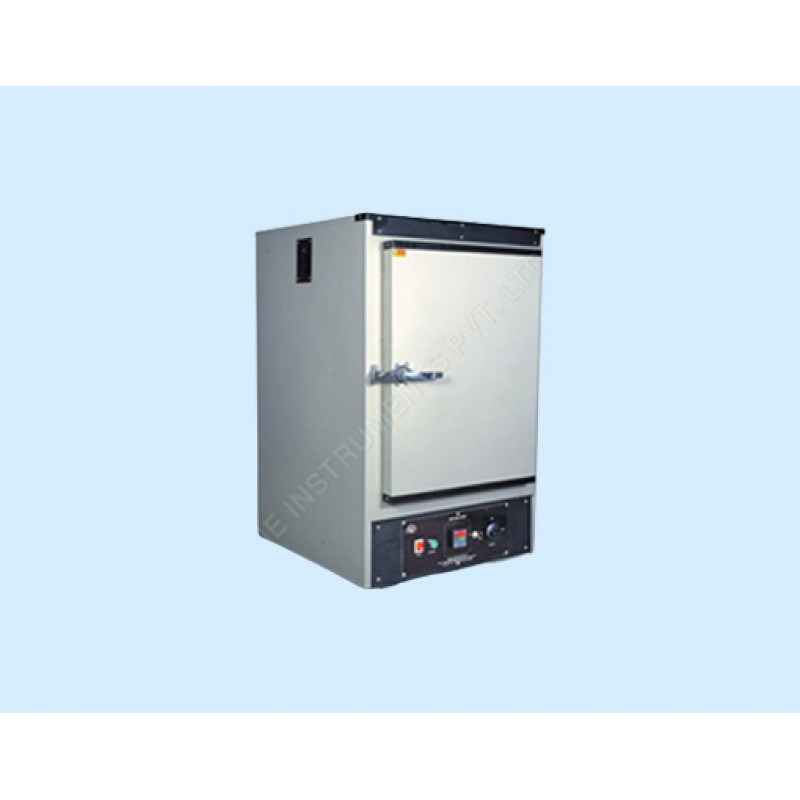

HOT AIR OVEN
Details :
Double walled inside made of Stainless Steel and outside made of Mild steel and painted in Epoxy Powder Coating. The gap of 75mm between two walls is filled with pure mineral wool. Synthetic gasket is provided on the door for better grip. Heating Elements are placed in ribs at the bottom and sides. Adjustable air ventilators are placed near the top of the sides. The temperature is controlled by a Precision Thermostat/PID from few ºC above ambient to 250 º C with sensitivity of +20 C. Supplied complete with two pilot lamps,thermostat, adjustable perforated shelves adjustable
Specifications :
Model | LZHAO - 1 | LZHAO - 2 | LZHAO - 3 | LZHAO - 4 | LZHAO - 5 | LZHAO - 6 |
---|---|---|---|---|---|---|
Internal Volume | 28 Liter | 45 Liter | 64 Liter | 90 Liter | 120 Liter | 216 Liter |
Internal Dimension | 12” x 12” x 12” | 14” x 14” x 14” | 16” x 16” x 16” | 18” x 18” x 18” | 18” x 18” x 24” | 24” x 24” x 24” |
Heater Load | 0.75kw | 0.75kw | 0.75kw | 1.5kw | 1.5kw | 2.0kw |
No of Shelves | 2 | 2 | 2 | 3 | 3 | 3 |
Outer Body | M.S/S.S | M.S/S.S | M.S/S.S | M.S/S.S | M.S/S.S | M.S/S.S |
Inner Body | S.S | S.S | S.S | S.S | S.S | S.S |
