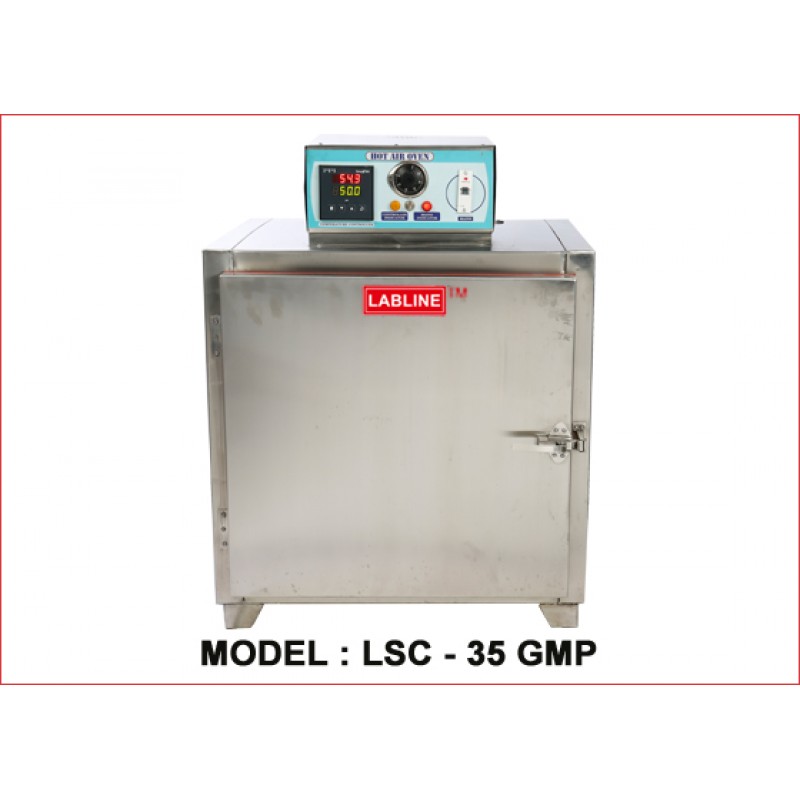

Hot Air Oven GMP
Unique Features :
- Ergonomic Design
- Superior Functionality
- High Temperature Accuracy
- Better Temperature Uniformity
Construction :
- Triple walled construc on, Completely made of Stainless Steel Inner made of 316 Q & Outer made of 304 Q.
- Gap between the walls is filled with special grade glass wool for proper insulation to avoid heat loss and thereby saving energy.
- The door is fully insulated with S.S lock, hinges.
- Air Ventilations are placed at left & right side for hot gases / fumes.
- Supplied with Stainless Steel wire mesh shelves.
- Forced Air Circula ng System with Fan for Temperature Uniformity.
- Safety Thermostat.
Technical Data :
- Temp. Range : 50 0C to 2500C
- Temp. Accuracy : ± 10C
- Digital Temp. control : Micro-processor based Auto Tune P.I.D Digital Temperature Controller with PT 100 sensor & Resolution 0.1°C . Dual display one for process value (PV) & the another for Set Value of Tempreture (SV)
Heating Element :
- Heating element of GMP model are placed at the right & left side of the inner chamber and is made of special grade chrome plated Nichrome wire (ISI Approved) for uniform temperature.
Optional Accessories :
- Digital Temperature controller Cum Indicator with Timer.
- Safety Thermostat.
Inner Chamber Size W * D * H | Rating Watts | No.of Shelves |
---|---|---|
12" * 12" * 12" | 1250 | 1 |
14" * 14" * 14" | 1450 | 2 |
18" * 18" * 18" | 1750 | 2 |
18" * 18" * 24" | 2000 | 3 |
24" * 24" * 24" | 2500 | 3 |
24" * 24" * 36" | 3500 | 4 |
