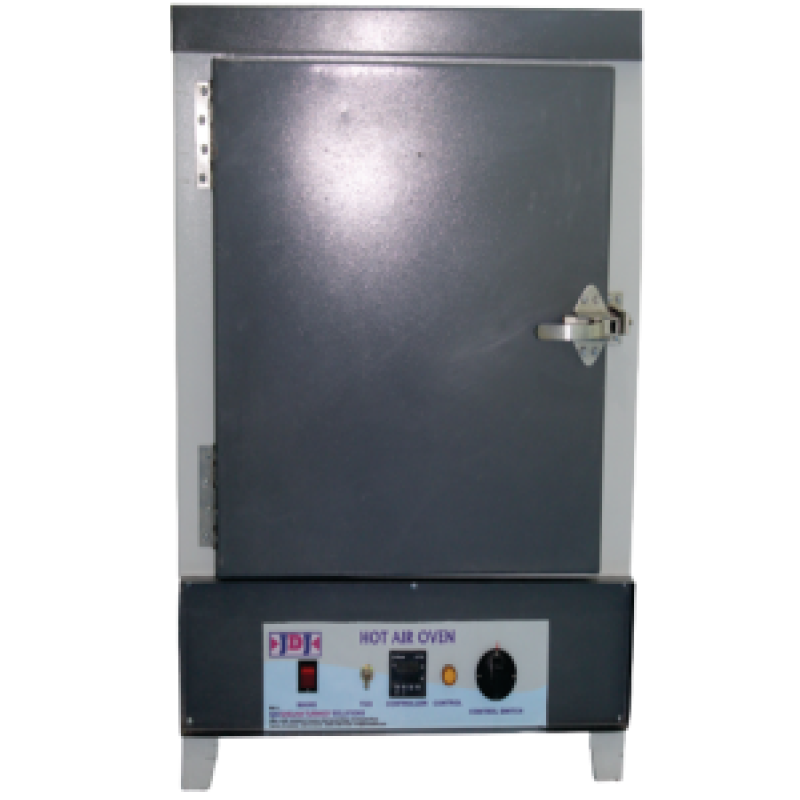

Hot Air Oven

Product Details :

CONSTRUCTION

• Double walled construction inner chamber made of Stainless Steel & exterior made of Mild Steel Powder Coated or stainless Steel.
• Gap between the walls is filled with special grade Mineral wool/Glass wool for proper insulation to avoid heat loss and There by saving energy. (insulation-70mm)
• The door is fully insulated with S.S lock, hinges.
• Air Ventilations is provided on the top of unit to remove hot gases / fumes.
• Supplied with SS shelves.

TECHNICAL DATA

• Temp. Range : 50°C to 250°C
• Accuracy : Digital: ± 2°C (or better)
• Heating element : Memmert model is placed at the bottom, right & left side of the inner chamber and is made of Nichrome wire.
• Digital Temp. Controller : Micro-processor based Auto Tune P.I.D Digital Temperature Controller with PT 100 sensor.(Make: i-therm Or equivalent)
• Resolution : 0.1°C

DOCUMENTATION

• We provide Manual & DQ, IQ, OQ, PQ documents compliant to competitive regulatory guidelines.
• We provide calibration certificates for Hot Air Oven Manufacturer in Ahmedabad, which are traceable to national standards.
• We also provide S.O.P for Hot Air Oven.

OPTIONAL ACCESSORIES

• Timer.
• Castor wheels for easy movability.
• 21-CFR Part 11 Compliance software.
• Safety Thermostat.
