Hot Air Oven

Product Details :

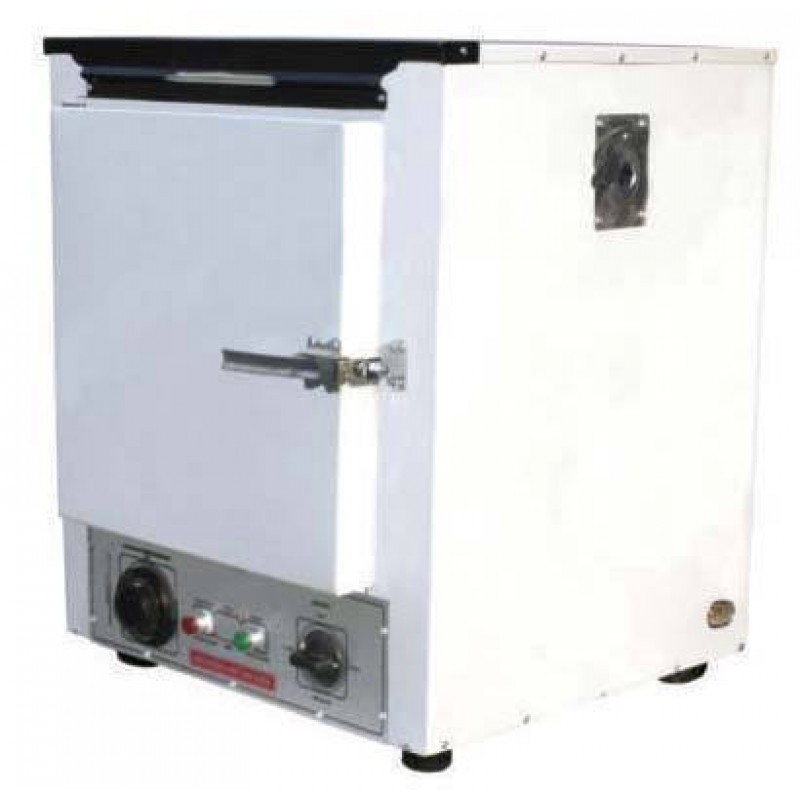

Hot Air Oven MSW-112HO:

We are offering hot air oven, nu-101 hot air ovens (memmert type) (three side heating elements) standard double wall fabrication. Inner chamber made of richly anodized aluminium or highly polished stainless steel sheet. Exterior fabricated out of thick mild steel sheet duly finished in stove enamel off-white paint or paste mat finish colour combinations. The gap between the walls is filled with special grade glass-wool for heat insulation. Inner chamber is ribbed for placing shelves at convenient levels. Provided with two or three removable shelves. Special elegant door closing device has been provided. nichrome wire heating elements -provided on three sides attain quick and uniform heating in range of 50oc to 250oc + 1oc controlled by capillary type thermostat. L-shaped thermometer is built-in type. Control panel is provided with selector switch of high or low rates of power, thermostat control knob and indicators for mains & thermostat. Supplied with cord and plug. The equipment is suitable to operate on 220 vac 50 Hz single phase.

Chamber Size (in mms inches) no. Of shelves

• 300 x 300 x 300 (12" x 12" x 12" ) 2
• 350 x 350 x 350 (14" x 14" x 14") 2

• 400 x 400 x 400 (16" x 16" x 16") 2
• 450 x 450 x 450 (18" x 18" x 18") 2

• 600 x 450 x 450 (24" x 18" x 18") 2

• 600 x 600 x 600 (24" x 24" x 24") 2

• 900 x 600 x 450 (36" x 24" x 18") 2

• 900 x 600 x 600 (36" x 24" x 24") 2

• 900 x 900 x 900 (36" x 36" x 36") 2


Optional

• Air circulating fan.
• Timer 0-24 hours

• Digital temp. Indicator-cum- controller.

• Imported thermostat “ego” “jumo” german with the accuracy of ±1oc.
• Digital temp. Indicator.

Additional Information:

• Production Capacity: 100
• Delivery Time: 7
• Packaging Details: Wooden Box export worthy.
