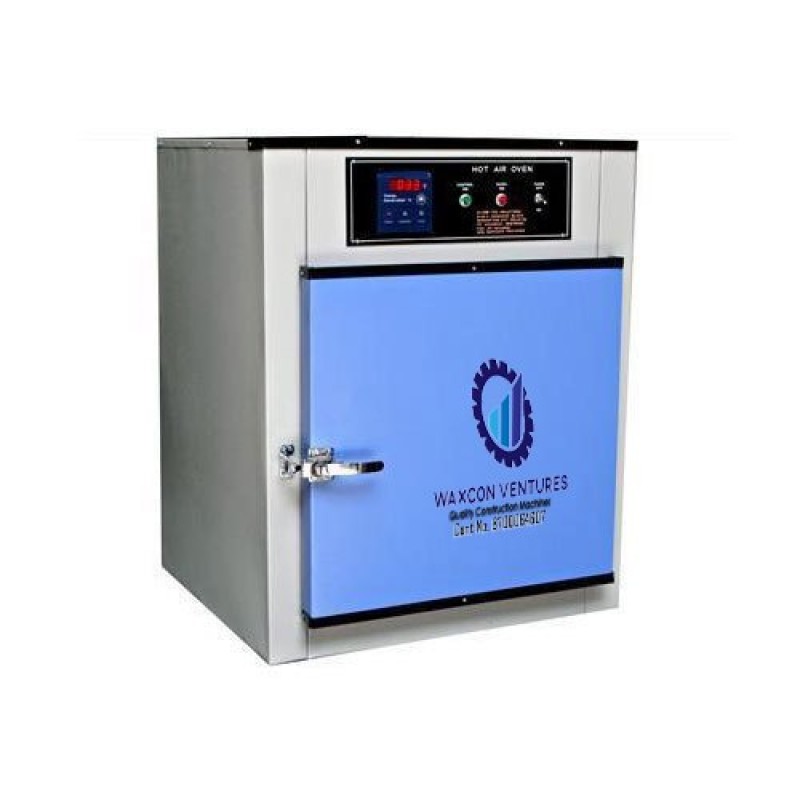

Hot Air Oven
Product Details :
Type | Construction Oven |
Size | 18x18x24 |
Usage/Application | Laboratory |
Max Temperature | 250 |
No Of Trays | 2.0 |
Material | Aluminium |
Air Circulation | Motorized Recirculation |
No Of Chamber | One |
Temperature Range : The standard temperature range of a laboratory hot air oven is ambient+10°C to 150°C but we can also make up to 200°C and 250°C.
Temperature Controller : We always equip our hot air oven with imported and branded PID temperature controllers that feature auto-tuning and display both set value (SV) and process value (PV). It is also responsible for accuracy of temperature during the entire cycle. RTD PT100 sensor has sensitivity of ±0.1°C or better
Heating Element : Sheathed Tubular air heaters are considered best for hot air ovens; these elements are ISI mark and from reputed brands in the market and offer fast heat up using minimum energy consumption.
Air Circulation : In order to achieve better uniformity across the chamber, air circulation is mandatory; therefore, we use only branded motor and blower assembly for this purpose. It is fitted at rear side or top side of the chamber as per convenient.
Construction : Rugged construction is prime requisite of any hot air oven; therefore, we use only stainless steel sheets of thick gauge that are nicely jointed through arc welding. External cabinet is usually made of powder coated GI sheet and for GMP models stainless sheets are used.
Customization : We understand the requirement of customization; therefore, we offer number of optional features and accessories with our hot air oven such as toughened glass viewing window, perforated stainless steel shelves, 21CFR based controller, data logging and monitoring device, programmable soak timer, color touch screen controller etc.
