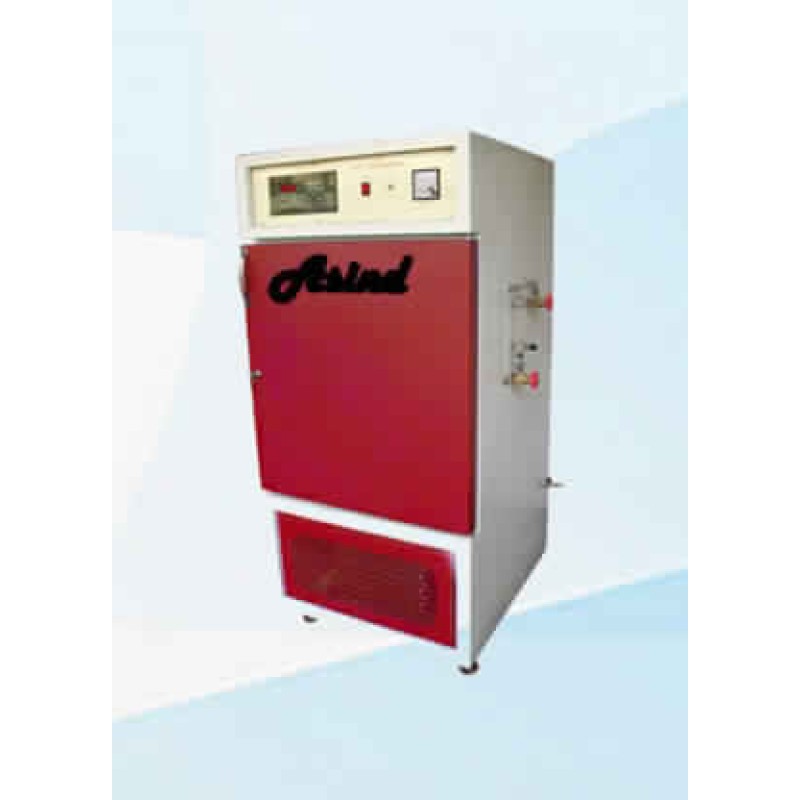

INCUBATOR (DOUBLE WALLED)
Product Details:
Incubation, Sterilization and storage for Pharmaceuticals, Agriculture, Medical and Food Industries, Bio-tech laboratories & Educational institute, requiring controlled temperature above Ambient.
Double wall inside made of thick anodized aluminum/ S. Steel 304 grade and outside Mild steel sheet furnished in durable power coating. The gap of 3” between two walls is fitted with pure white glass wool the door has double viewing to permit observation without disturbing thermal condition. Heating elements are placed in ribs at the bottom and sides. Two adjustable ventilators are placed near the top of the side. Built in horizontal “L” shaped thermometer 0˚ C to 110˚C. The temperature is control Bi-metallic hydraulic capillary thermostat from ambient to 70˚C with sensitivity of ± 1˚C .
TECHNICAL SPECIFICATION INFORMATION:-

INTERIOR (MM)	300 X 300 X 300	350 X 350 X 350	450 X 450 X 450	450 X 450 X 605	605 X 605 X 605	605 X 605 X 900	605 X 450 X 900
Capacity (LTR)	28	45	95	125	224	336	252
Heater load	400W	400W	500W	700W	750W	1.0KW	1KW
Shelves	2	2	2	2	2	3	3
Temp. Range	Ambient to 70˚C
Temp. Stability	± 1˚C
MOC (Inner)	Aluminum/Made of Stainless Steel (SS-304)
MOC (Outer)	Made of mild steel sheet duly powder coated.
Safety Device	Over Temperature limiter switch.
Heater	Kanthal A1 super quality coil shaped heater
Typer	Force convection system.
Temp. Controller	Bi-Metallic Hydraulic capillary thermostat controller
Regulator	Solid state electronic relay with protective heat sink
Insulation	Glass wool/Ceramic Blanket
Front door	Glasswool/Mineral wool insulated door with glass window
Power supply	220/230V A.C single supply; 50Hz
Duty cycle	Continuous
