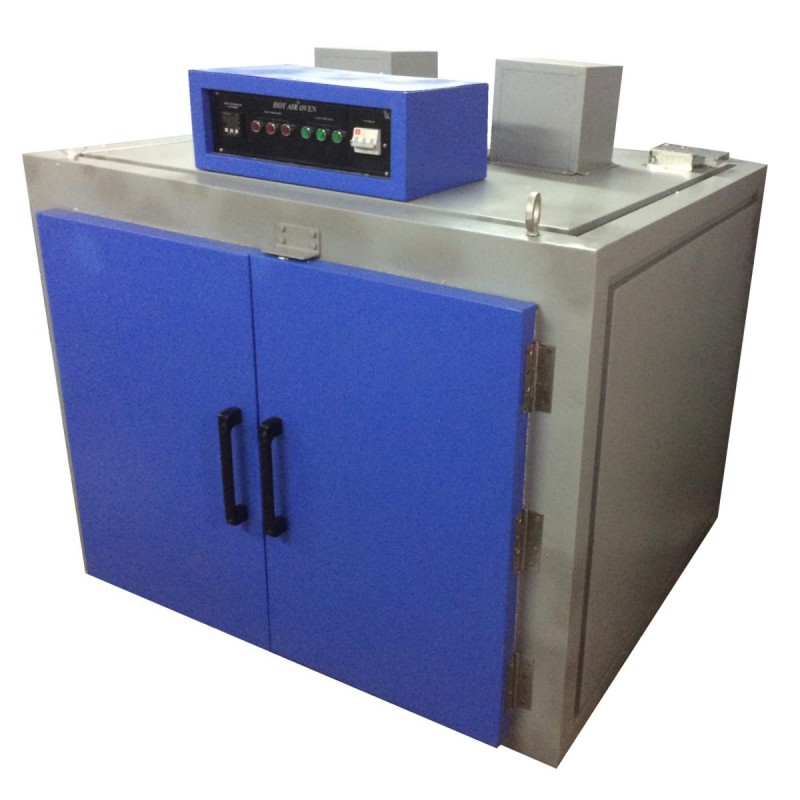

INDUSTRIAL DRYING OVEN
Product Details :
MODEL: MKSI-103-SERIES
We hold expertise in manufacturing and supplying and exporting a superior quality range of Industrial Oven. M.K. Scientific Instruments Industrial ovens are heated chambers used for many industrial applications drying application, tablets, Baking components, Heat treatment, bottle sterilizing, drying chemicals etc. The industrial ovens come in various sizes and capacities such from 45 liters to 1037 liters.
CONSTRUCTION :
- Triple walled
- Inner Chamber: Inner chamber made of Stainless steel.
- Outer Body: outer chamber develop using high grade mild steel with powder coated finish. This coating keeps safe the unit from rust and normal scratches.
- Insulation between inner & outer wall with glass wool/ mineral wool thick to avoid any heat loss.
- Temperature Range: Temperature ranges from 50°C to 250°C with temperature accuracy of ± 3°C.
- Temperature Controller: The Temperature is totally microprocessor based P.I.D. or Digital Temperature Controller cum Indicator controlled for accurate temperature rating.
- Air Circulation :Forced convection system through use of blowers & motors that provides for superior mixing as well as strong dispersion
- Shelves: Stainless steel perforated/wire road shelves adjustable and sliding.
- Power: Power input to be 220-230 Volts AC, 50/60 Hz fitted with Indian plug.
TECHNICAL SPECIFICATIONS:-
| Model | Inner Chamber W x D x H | Ltrs. | Trays | Load |
| MKSI- 103 | 3′ x 2′ x 3′ Feet | 510 | 2 | 5 KW |
| MKSI- 103-A | 3′ x 3′ x 3′ Feet | 765 | 2 | 6 KW |
| MKSI- 103-B | 3′ x 3′ x 4′ Feet | 1020 | 2 | 7 KW |
| MKSI- 103-C | 3′ x 2′ x 5′ Feet | 850 | 2 | 10 KW |
| MKSI- 103-D | 3′ x 2′ x 6′ Feet | 1020 | 3 | 10 KW |
| MKSI- 103-E | 3′ x 3′ x 6′ Feet | 1530 | 3 | 15 KW |
| MKSI- 103-F | 3′ x 3′ x 8′ Feet | 2040 | 3 | 15 KW |
| MKSI- 103-G | 4′ x 3′ x 8′ Feet | 2720 | 3 | 18 KW |
| MKSI- 103-H | 4′ x 6′ x 4′ Feet | 2720 | 3 | 18 KW |
| OPTIONAL ACCESSORIES | |
| GMP models | With inner chamber & outer body complete made of Stainless Steel |
| Temperature Recorder | By Weekly temperature recorder |
| Temperature Alarm | For High and Low Temperature Variations |
| Printing Facility | By Built in Mini Printer to record temperature. |
| SMS Alert | Alert on Mobile in case of any deviation |
| HMI with PLC | Full touch programmable function for controlling High temperature , low temperature , low battery , open the door , blocking filters , system failure. |
| Data Logger | RS-485/RS232 communication ports, cables, window based software with inbuilt data recording. |
| Graphic LCD | Jumbo LCD with Programmable function |
| Communication Port | Communication Port with interface and data cable to download data to your PC. |
| Regulated Voltage | By Voltage stabilizer |
