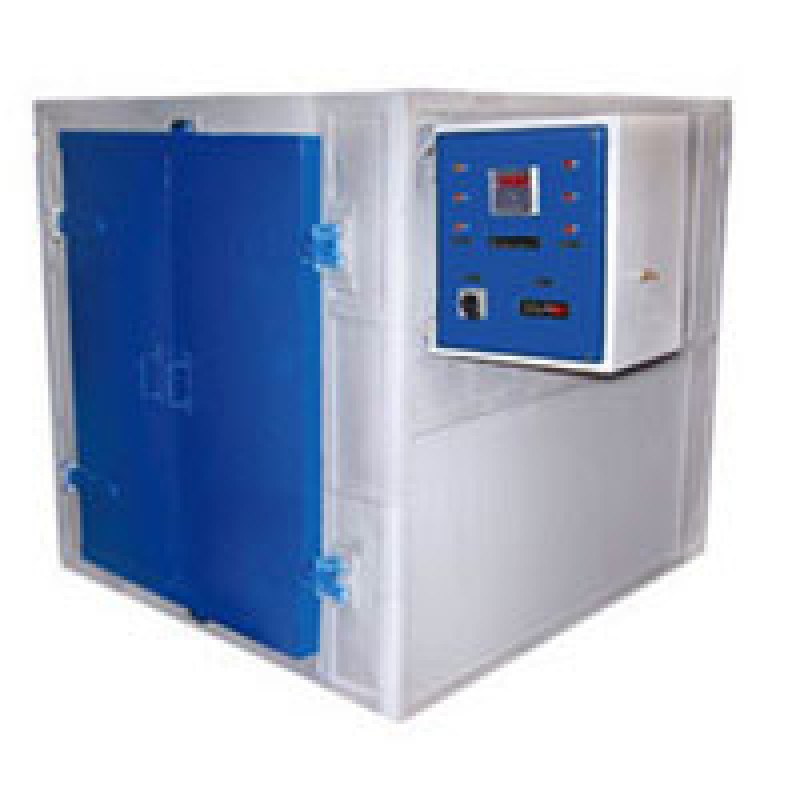

Industrial Oven

Product Details :

This industrial oven is specially designed as per guideline of GMP supplied with IQ, OQ & PQ Document with Calibration report for PID Controller.

Specifications

• Triple Walled construction.
• Inner made of S.S.316 Mirror polished
• Outer made of S.S.304 Dull finish.
• Gap Between the two walled filled with high grade glass wool insulation of 65 mm
• Heating Element is made of S.S. ‘U’ type tubular Nichrome wire with S.S. Sheathing.
• Heaters are placed at the right & left side of the inner chamber.
• PID Controller with auto tuning facility with double display to view set & current temp.
• Temp. Range 50 ˚C to 250 ˚C
• Silicon rubber gasket fitted on door to prevent lost of heat.
• Control Switch & pilot lamp are fitted on front panel supplied with S.S. Rod Type Jali.
• ble controller with 8 steps

Optional accessories :

• Digital timer to cut off the heater at set intervals PID controller with printer interface to record set valves & actual valves data 7 Timer.
• Single 4 point/8 point data logger.
• Air circulation for uniform Temp. Throughout chamber.
