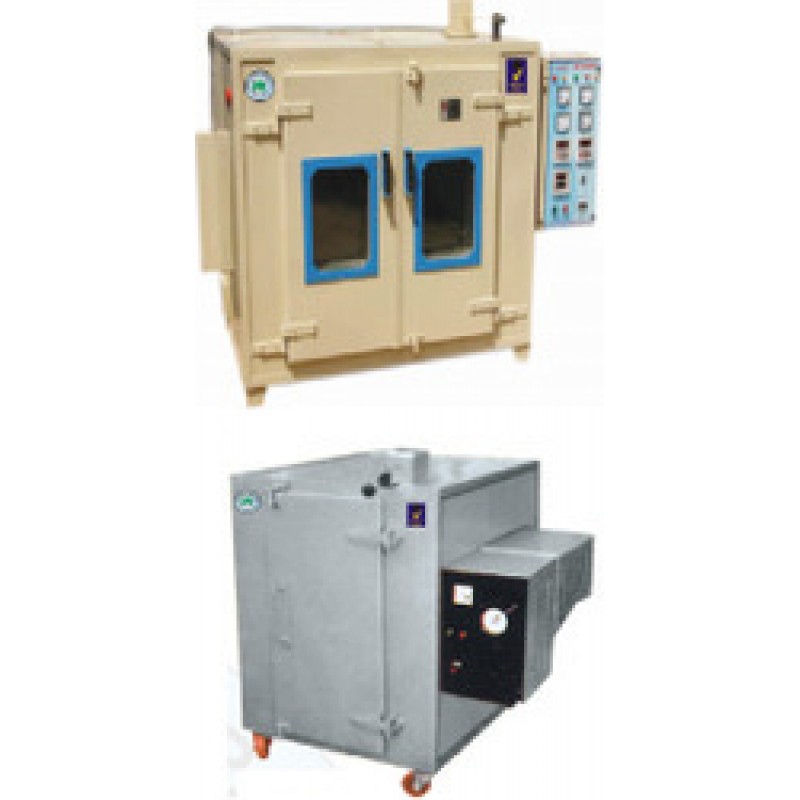

Industrial Oven
Product Details :
As a prominent company, we are engaged in presenting a wide range of Industrial Oven. Our product is developed by professionals under the supervision of adroit professionals in compliance with universal industry parameters. Our product is extremely employed in the market owing to their longer service life. Our product is accessible in numerous customized options as per the necessities of our clients.
Features:
- Precise Hot Air Drying Oven & sterilization better mineral / glass wool Insulation to avoid heating loss during use.
- Low Noise Blower, unique design of Air Circulation provide throughout the chamber.
- Unique design of ventilation keeps the surface of the Instruments i.e. oven / Drier Temp.
- Maintained at 200/250°C.
- Polish S. Steel sheet 304 grade interior corrosion resistant long life operation having adjustable shelves to make space for difference height
Technical Specifications:
| Model | UTS 1.02 A D.Door / Single Door | UTS 1.02 B Double Door | UTS 1.02 C Double Door | UTS 1.01 (C) | UTS 1.01 (D) | UTS 1.01 (E) | UTS 1.01 (F) |
| 125 | 224 | 336 | 252 | ||||
| Interior (mm) | 900 x 900 x 900 | 900 x 950 x 1200 | 1200 x 1200 x 1200 | 450x450x605 | 605x605x605 | 605x605x900 | 605x450x900 |
| Heater Wattage "W" | 4 KW | 4.5 KW | 4.5/ 5.0 KW | 2.0 KW | 2.5 KW | 3.0 KW | 2.5 KW |
| Shelves | 2/3 | 3 | 3 | 2 | 2 | 3 | 3 |
Technical Parameters:
- Temperature Range :Ambient to 250°C, Controlled from 50°C - 250°C.
- Temperature Stability : -1°C or 2°C or better In Microprocessor Based PID Temp.
- Controller model - 0.5°C
- Housing Material : CRC / Mild Steel heavy duty having angle Iron Frame at the bottom with castor wheel duly painted / Powder Coated Optional : Double Colour, Door / Top & Panel Grill on request Control Panel : Digital Temp.
- Controller, Load & Temp. Indicator, Fan Switch, Mains Switch.
