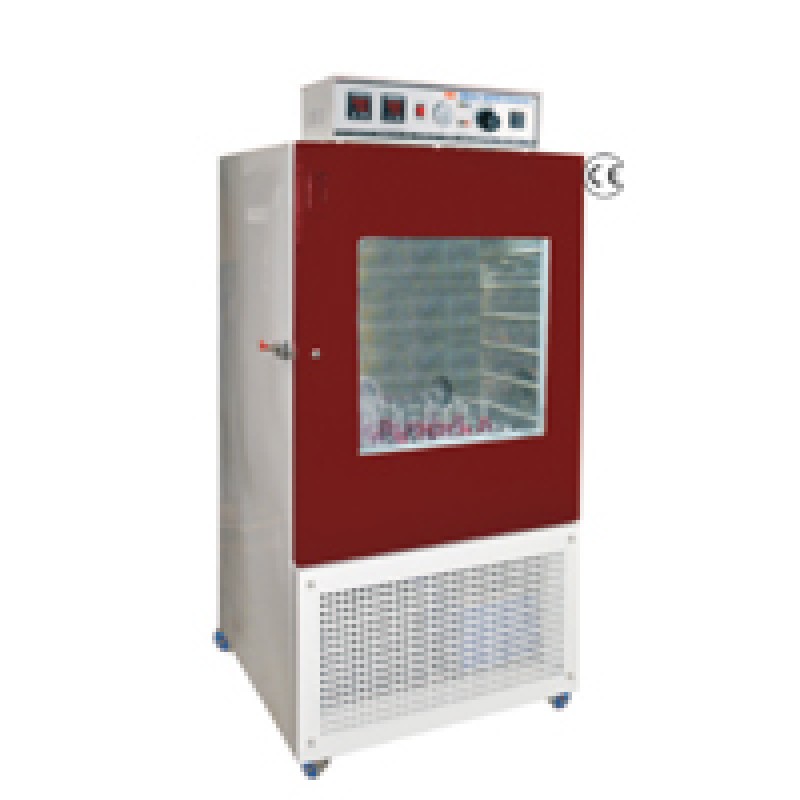

ORBITAL SHAKING INCUBATOR (REFRIGERATED) REW-132
Product Details :
- Useful
for life science applications, Fermentation Studies, Ageing Tests, Growth
Studies and biological cultures under various controlled temperature
conditions.
- Advanced shaking mechanism provides quiet shaking
and precise speed control with digital display
- Minimum noise, no vibration and minimal footprint
- Stabilized orbital motion under uneven load
distribution
- Various configurations of stainless steel lotus
clamps available for Erlenmeyer flasks
- Interior made of Stainless Steel (304 grade) with a
drain-off-facility for spill overs.
- One set of lotus clamps holders with one shaking
platform of stainless steel (SS-304) supplied with the unit as a standard
accessory
- Stationery shelves made of Stainless Steel (SS-304)
for use of the unit as a standard B.O.D. Incubator, can be supplied.
- Automatic restart at preset speed in case of power
failure.
- Useful for life science applications, Fermentation Studies, Ageing Tests, Growth Studies and biological cultures under various controlled temperature conditions.
- Advanced shaking mechanism provides quiet shaking and precise speed control with digital display
- Minimum noise, no vibration and minimal footprint
- Stabilized orbital motion under uneven load distribution
- Various configurations of stainless steel lotus clamps available for Erlenmeyer flasks
- Interior made of Stainless Steel (304 grade) with a drain-off-facility for spill overs.
- One set of lotus clamps holders with one shaking platform of stainless steel (SS-304) supplied with the unit as a standard accessory
- Stationery shelves made of Stainless Steel (SS-304) for use of the unit as a standard B.O.D. Incubator, can be supplied.
- Automatic restart at preset speed in case of power failure.
TECHNICAL SPECIFICATIONS
& ORDERING INFORMATIONS
MODEL | #REW-250 | #REW-250(LCD) |
MOC Outer | Powder Coated CRC Steel Sheet | |
MOC Inner | Chamber and trays made of stainless steel (SS-304) | |
Capacity | 280Ltrs | |
Volume | 10Cuft | |
Temperature Control | Microprocessor Based Digital Temperature Indicator-cum-Controller | |
Display | LED with Set Value (SV) and Process VALUE (PV) | LCD with Set Value (SV) and Process VALUE (PV) |
Inner Chamber Size (WxDxH) in mm | 660x660x690mm | |
Insulation | High Density PUF insulation for tighter temperature controls | |
Shaking Trays Size | 510 x 510mm | |
Shaking Frequency | Upto 250rpm (adjustable) | |
Shaking Amplitude | 25mm | |
Type | Forced Convection Type | |
Temperature Range | 50C to 600C | |
Temperature Accuracy | +0.5oC | |
Safety | Over temperature limiter switch prevents overheating | |
Cyclic Timer | Fitted with cyclic programmable timer. | |
Light Bank | Consisting of fluorescent lamps to provide illumination for photosynthetic applications | |
Shaking Motion | Permanent Magnet DC Drive for continuous operations | |
RPM Display | DIGITAL DISPLAY |
OPTIONS
- Chamber sterilizer through a U.V. germicidal tube.
- Stationary perforated shelf made of S.S.(304 Grade)
(Set of 2 trays)
- Communication Port with interface and data cable to
download data to your PC.
- Servo Voltage Stabilizer (Cap : 4 KVA)
- Spare lotus clamps made of S.S
