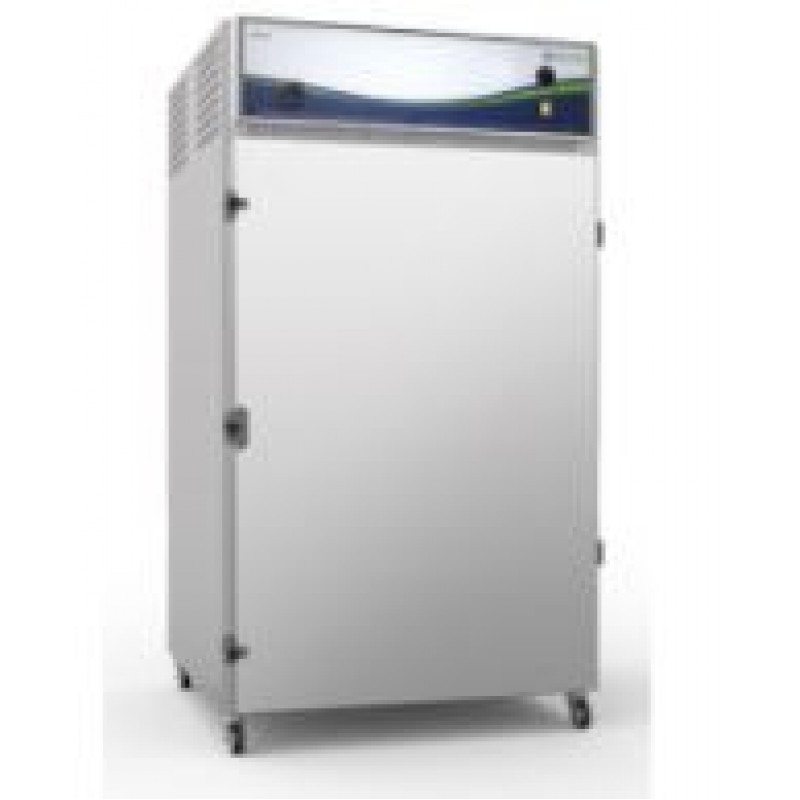

OVEN

Product Details :

Thermolab’s Oven provides heated conditions for curing, drying and exposures for high temperature testing with high accuracy and superior quality.

Standard Features:

• Inside Stainless Steel and Outside Mild Steel Powder Coated OR Stainless Steel
• 3’” Thick Ceramic wool Insulation
• Motor and blower arrangement to have uniformity of condition under chamber loaded condition
• U shape S.S. Nichrome wire air heater
• Microprocessor based PID controller (Auto Tuning Type) with digital display
• Safety alarm system (Jumo German Thermostat) to cut off the supply in case of overshoot
• 2 Nos. Stainless Steel welded rod trays. With adjustable tray height arrangement Adjustable Ventilator, Silicon rubber gasket (for Oven) and Viton Gasket (for Hot Air Oven)
• Works on 230 V AC single phase 50 Hz
• Complete with Operating manual and IQ, OQ and PQ documents

Optional Features:

• Electronic Timer of 999 hours with digital display will be provided to cut off the supply after the set time is over giving audio alarm
• Printer Interface facility to record on 80 Col. dot matrix printer set values, actual values date and time with variable print time interval. (To be ordered with PID Controller)
• PC Interface communication card with RS 485 for above control system. (Hardware for each oven). (To be ordered with PID Controller & Printer Interface)
• CFR 21 Part 11 compliance Window based communication software for data management. Complete with RS 485 multi dropping to monitor multiple equipments on one software

Specifications:

• Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
• GMP Model(G) : Inside S.S. 304 & outside S.S. 304
• Temperature range : 50 oC to 200 oC and 50 oC to 300 oC
• Temperature Accuracy : ± 0.5 oC
• Temperature uniformity : Upto 150 oC = ± 5.00 oC
• 150 oC to 200 oC / 300 oC = ±10 oC

Documentation:

• Complete with IQ, OQ, PQ documents
• Operation and Maintenance manuals
• Training to end users

Technical Data:

* TO 90 is a table top model.
