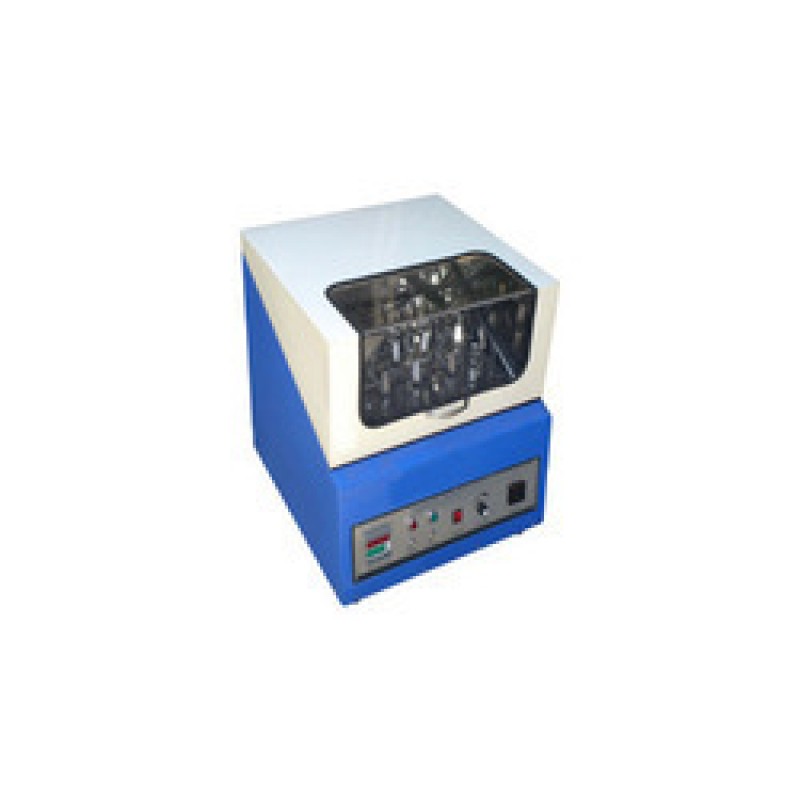

Our company also takes pride in providing a wide range of Orbital Shaking Incubator. These are designed & fabricated to suit various is standard of orbital shaking motion applicable in growing field of medical agricultural industrial Research Laboratories & Others.
Technical Specifications:
- Double walled inner chamber made of S.S.304 & outer M. S. Powder coated
- PUF insulation between two walled
- Heavy angle frame structure from all sides
- Shaking assembly electric pulley mechanism
- Platform adjustable stainless steel platform
- Flask Holder: Spring type clamp arrangement with easy interchangeability facility
- Motor (PMDC Motor)
- RPM 50 to 250 RPM controlled by Regulator
- Stroke 25 to 30 mm Stroke displacement
- Temp. Controlled by digital Temp. Controller cum indicator with accuracy of ±0.5 C
- Temp. Range 10 C to 60 C in cooling Model & in heating Model 5 C above ambient to 60 C.
- Cooling by CFC free hermetically sealed compressor
- Heating by ‘U’ Type tubular S. S. Heater
- Illumination light to view
Optional Accessories:
- RPM Indicator in digital Display
- Digital timer with Audio visual Alarm
- Chamber illumination with U. V. Tube
- Additional tray as per Flask Size
No.of Flask X size in ML | Rating Watts |
9 x 250 ml | 500 |
16 x 250 ml | 1000 |
20 x 250 ml | 1000 |
36 x 250 ml | 1500 |
9 x 500 ml | 500 |
16 x 500 ml | 1000 |
20 x 500 ml | 1000 |
36 x 500 ml | 1500 |
