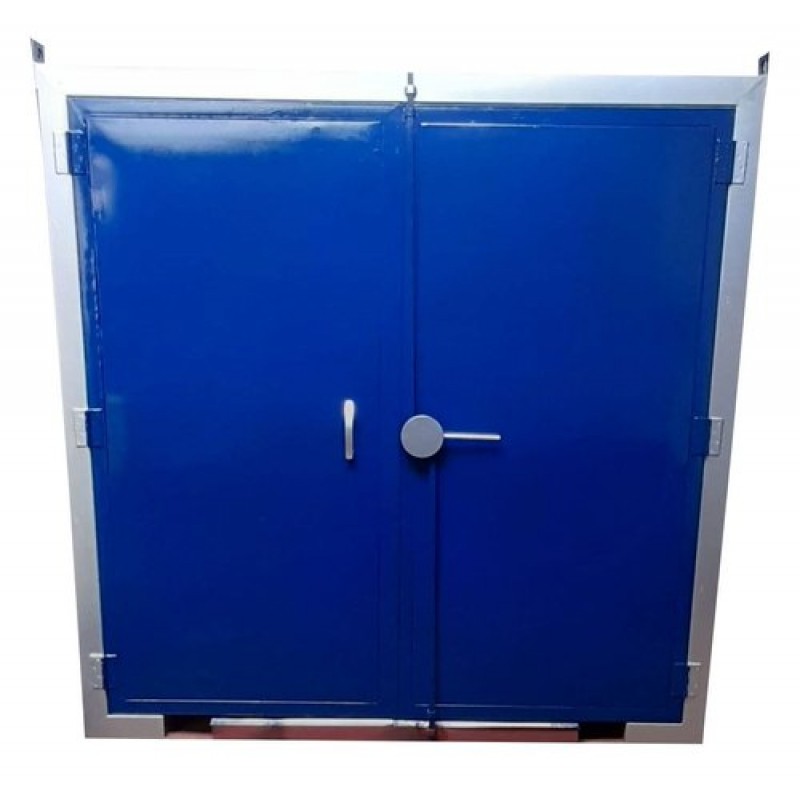

Paint Baking Oven

Product Details :

Features:

• Inner Chamber: Made up of MS Grey (color).
• Outer Chamber: Made up of Thick MS (Heat resistant silver color).
• Motor: 2Numbers1 HP (National Products make) 1440 rpm with strong shaft and fan blades to circulate Air inside the chamber.
• Controller: 3numbers of Digital PID controller (Subzero make) 48X48mm with Timer temperature setting facility along with the timer.
• Censor: 3 Numbers K type censor (PPI make) for accuracy in temperature indication.
• Heater: SS Tubular heater.
• Maximum Temp: Up to 250° temperature.
• Temp. Accuracy: +/- 1 degree Celsius.
• Insulation: 75mm thick Rockwool insulation between two walls.
• Rating: 18KW.
• MCB: 1 Nos of 4 pole MCB (L&T/HPC make) 32 amp
• Air Vents: 4 Numbers Hot Air Outlet on Top of the Oven
• Supply: 3 Phase

Additional Information:

• Delivery Time: 15 days
