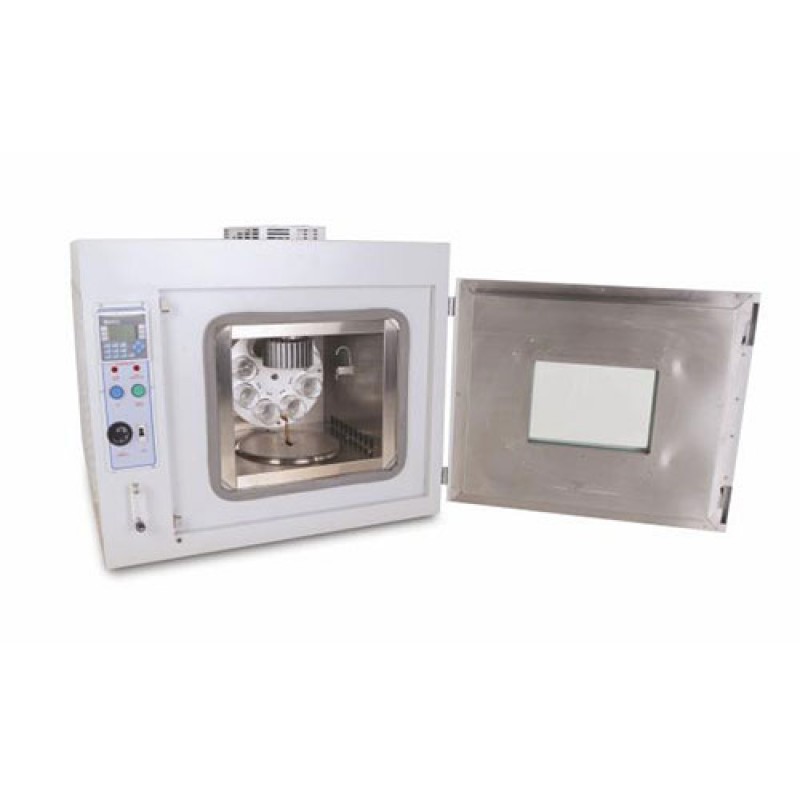

Rolling Thin Film Oven

Model No.: SMEW-0158

Standards :

Specification : The super pave PG binder specification looked for tests which would closely simulate field performance. Hotmix asphalt binder experiences significant aging during the manufacturing and laying process. Investigating this phenomenon within a laboratory environment, with a repeatable and simple test is very useful within the design process. The rolling thin film oven (RTFO) test is used to measure the effect of heat and air on a moving film of semisolid asphalt binder. The results of this treatment are determined from measurements of the binder properties before and after the test. Repeatability of the test is directly related to the accuracy with which the oven temperature can be maintained and the reproducibility of the thermal rise time of the system. Super accurate P.I.D. Controller

Construction : Double-walled construction, 16 -gauge welded steel exterior, 18-gauge corrosion resistant stainless steel interior

• Insulation: 89 mm of high density fiberglass insulation
• Controller: Programmable microprocessor UL listed
• Temperature display: Measured temperature – 4 digit red LEDs
• Temperature set point: 4 digit green LEDs
• Thermal Protection: Prevents oven from overheating in the event of control failure
• Temperature Range: Ambient to 200°c
• Vents: Double exhaust vents for dissipation of expended volatile from specimen
• Air Flow Adjustment: Needle valve (long taper)
• Air Pressure Gauge: Range 0 – 100 PSI
• Heat Exchanger: 5/16 inch dia. copper tube
• Electrical Supply: 230 V AC 50 Hz single phase
• Dimensions: 1016 x 660 x 915 mm (w x d x h)
• Estimated Weight: 100 Kg
