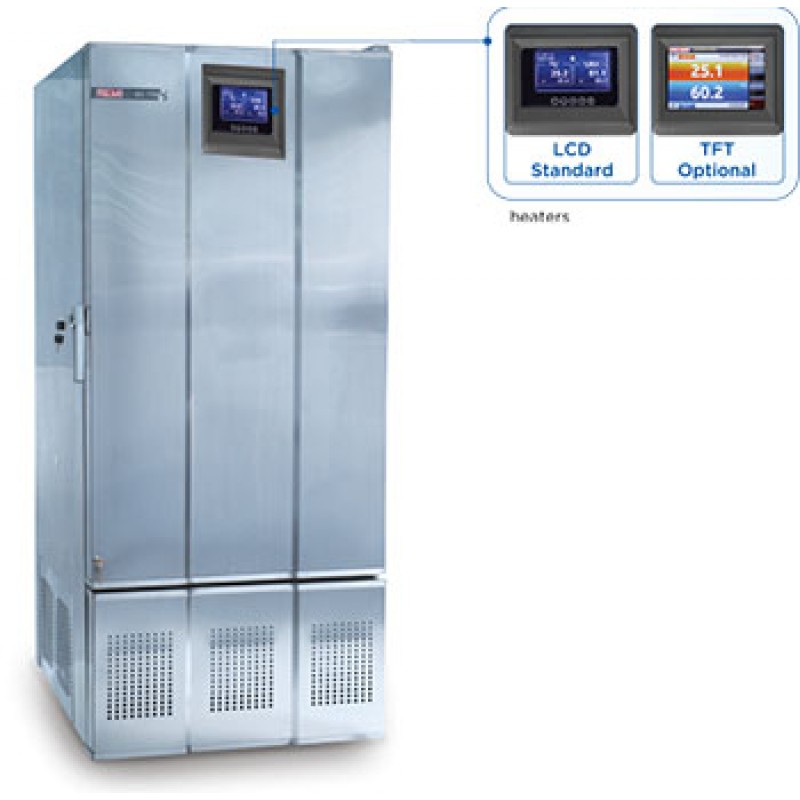

STABILITY CHAMBERS

Product Details:
REMI Stability Chambers are designed as per ICH Guidelines for precise monitoring of temperature and humidity conditions required for long term, intermediate & accelerated stability studies at chemical, pharmaceutical, agrochemical manufacturing facilities. These chambers are manufactured to comply with GMP requirements.

SALIENT FEATURES

• Fulfills storage conditions of 25°C “ 60% RH, 40°C “ 75% M RH, 30°C “ 65% RH, 25°C “ 40% RH
• Precise monitoring of temperature and humidity conditions
• Unique design of thermal barrier for better energy efficiency
• Machine filled PUF insulation to eliminate void pockets
• Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber within permissible limit Heating by long life SS tubular heaters
• Hermetically sealed Compressor with CFC free refrigerant
• Chamber calibration port on side
• Adjustable trays
• Output for remote alarm
• Microprocessor controller with LCD display & capacitance type sensor
• 4 ” attractive LCD display for direct display of humidity & temperature
• Auto tuning of controller
• Battery Backup for Controller
• Settable High / Low alarm points
• Centronic interface to record temperature, Humidity, Date & Time by attaching Dot Matrix printer with adjustable print interval
• REMI ‘Datasoft’ data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (Optional)
• Power failure and resumption recorded with date and time
• PC communication through RS “ 485 with data acquisition software
• High temperature safety cut off & alarms for high/low set parameters
• Low water level alarm and power cutoff of boiler tank heater
• Time delay for compressor switch on
• Overload cut off relay for compressor
• Rounded inner chamber for easy cleaning
• Auto door closer
• Attractive door profile
• Data logger for 8 point (4+4) temperature / humidity recording with sensor, printer interface and software (Optional)


Optional

• Touch screen display ( TFT ) with additional features(Details overleaf)
• Validation protocol with IQ, OQ, PQ Documentation


LCD DISPLAY

• 4 Inch attractive LCD display
• Intelligent Controller helps maintain temperature in case of sensor failure
• Battery Backup for Temperature Controller

• Auto tuning of controller
• Self-Diagnosis for errors
• Histogram format of 24 hours temperature recording

• Power failure and resumption recorded with date and time
• Settable High / low alarm points

• Memory for storage of upto 1000 records
• Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval

• Alarm on equipment / output for remote alarm
• PC communication through RS-485 with data acquisition software
• Remi “Datasoft”™ Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)


TOUCH SCREEN DISPLAY

• 7 inch big colour touch screen
• PLC (Programable logic controller)

• Memory of 10,000 records
• Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval

• PC communication through REMI Datasoft
• Ethernet port

• Battery backup in case of power failure for display, alarms & off-line data logging (optional)
• Programmable cyclic timer for controlling illumination conditions

• REMI ‘DATA SOFT’
• Multiple level alpha numerical password with password ageing

• Secured audit trail report
• Alarm report with mention of alarm condition

• Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
• Reports in graphical and tabular form

• Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
• Multi chamber data acquisition on single software

• Communication through RS 485 / TCP IP
• GSM Mobile Alert for six Numbers


OPTIONAL ACCESSORIES

• To be Ordered separately
• Data logger for 8 / 16 Point temperature & Humidity recording with sensors printer interface and software

• Seven days circular chart recorder (single channel)
• Software as per 21 CFR Part 11 requirements

• PLC Based Control System with HMI Touch Screen
• Biometrics Magnetic Door Access for Secured Door opening with software to maintain log
• Validation (mapping) consist of one cycle for temperature at any one set point for 24 hours on empty and loaded condition

• Standby Refrigeration System
• Standby Humidity System

• GSM alert through SIM card
