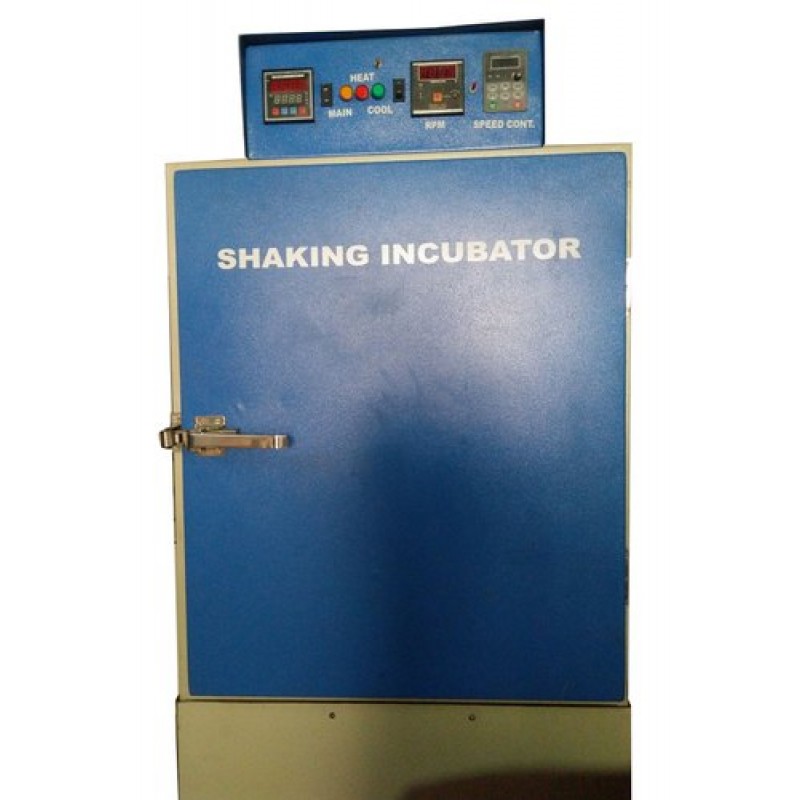

Shaking Incubators
Product Details :
Temperature Range | 5 Degree C to 60 Degree C |
Air Circulation | Motor driven blower |
Exterior | Exterior body made from heavy gauge M.S. Sheet with Powder Coated |
Interior | Interior chamber made from Stainless Steel 304 |
Insulation | Standard 75mm thick Insulation |
Exterior Doors | Solid doors are provided with magnetic gasket and lock & key or Handle With Lock |
Inner Doors | Glass door |
Tray | Removable tray to keep petri dishes |
Environment | Heating and Cooling both |
Platform | Stainless steel |
Clamp | S.S. Lotus Clamp |
RPM | 225 RPM |
Amplitude | 25 mm |
RPM Controller | Speed Regulator |
Shaking Mechanism | Brushless motor with Ball bearing crank shaft mechanism for smooth orbital motion |
Shaking Speed | 0 to 250 rpm (+-1 rpm) |
Heating | Tubular air heater |
Cooling | CFC free refrigeration system |
Temperature controller | Microprocessor PID controller Dual Display of SV & PV |
Temperature Sensor | PT100 |
Illumination | LED light |
Power Supply | 220 Volts / 50 Hz |
Description :
There are some laboratory applications that require shaking under a constant low temperature; therefore, Shaking incubators that combine incubator and orbital shaker under one unit. Some laboratory applications that require shaking under a constant low temperature. Such machines feature all the facilities of a refrigerated incubator along with one orbital shaker fitted; inside. Each unit is fitted with digital temperature controller, shaking speed controller and digital indicator for RPM.
Shaking Incubator offer excellent temperature uniformity and smooth orbital shaking. The machine is easy to use and maintain. Made of corrosion free steel sheets and rugged design.
Standard Size:
Model No. | SHAKING PLATFORM SIZE | CAP. TO HOLD FLASK |
---|---|---|
NICSI45 | 45 x 45cm | 250ml X 16 |
500ml X 16 | ||
1000ml X 9 | ||
NICSI60 | 60 x 60cm | 250ml X 25 |
500ml X 25 | ||
1000ml X 16 |
