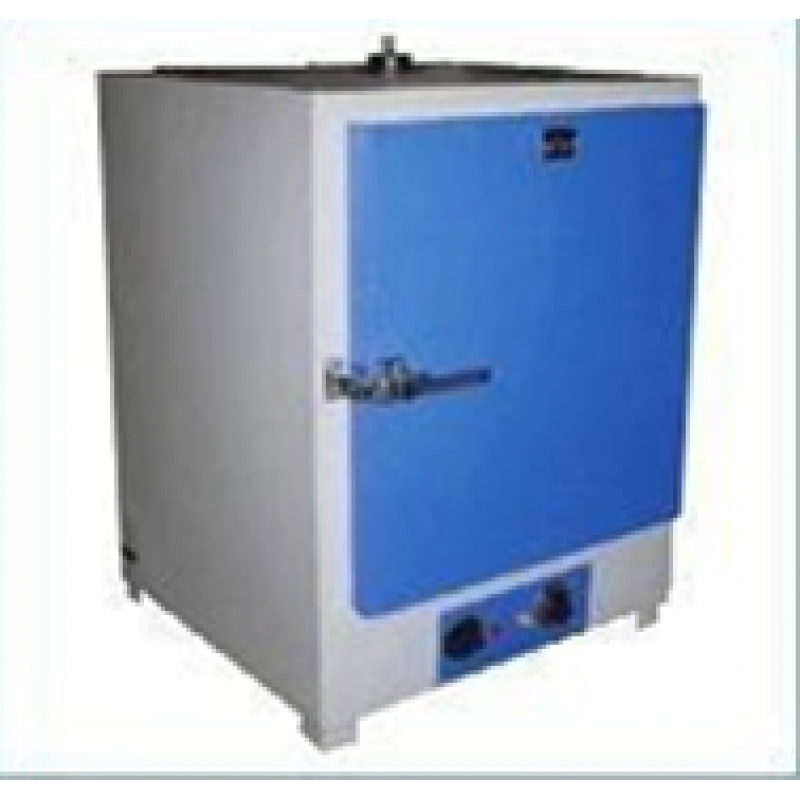

Cabinet Construction: Double walled sturdy cabinet with high quality glass wool to a minimum thickness of 2”.

• The outside cabinet is covered with powder coated paint.

• A fully insulated door with heavy cast and chromium plated brass hinges with spring and roller type latch is to effect secure seal.

• Very efficient and adjustable ventilation.

• Heating Elements: Are made from best quality nickel chromium wire.

• The heating elements are so designed and located that over heating in vicinity is minimized.

• Theheating elements are covered by perforated covers so that fresh air entering through the bottom parts is preheated and uniformly distributed in working space and undue heating of material at the bottom is avoided.

• Temp is controlled by specially designed E.G.O.

• thermostat. Electrically operated on 230V.

• Temp Range: 50ºC up 250ºC with accuracy: + 2ºC.Supplied G.I. wire mesh shelves, cord, plug, pilot lamp.

• Chamber Sizes: 12” X 12” X 12”/14” X 14” X 14”/18” X 18” X 18”/18” X 18” X 24”/24” X 24” X 24”/24” X 24” X 36”
