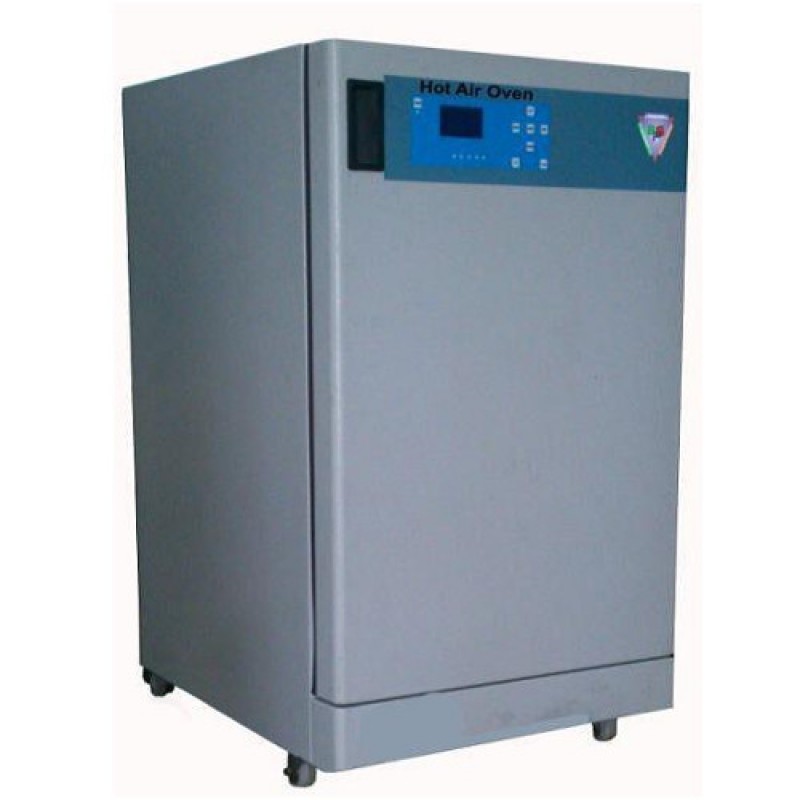

Universal Oven

Product Details:

Capacity	0-100 Kg
Brand	APS Laps
Body Material	SS
Temperature	250 degree C +/- 0.5 degree C

These are sturdy double walled units with outer chamber made of M.S. sheet duly powder coated / painted or stainless steel with inner made up of anodized aluminum or S.S. sheet. The gap between inner and outer chamber is filled with puff insulation to avoid thermal losses. Beaded heating elements are placed in ribs, at bottom and sides. Inner chamber is provided with ribs for adjusting perforated shelves to convenient Temp. Temperature is controlled by digital temperature indicator cum controller from ambient to 250°C ± 0.5°C. An - L shaped prismatic thermometer is fitted to the unit for reading the chamber temperature. Air ventilators are also provided on the sides of the unit. To work on 220/230 volts A.C.

Details:

Dimensions	M.S	S.S
300 x 300 x 300 m.m.	19625	23375
355 x 355 x 355 m.m.	20875	24625
455 x 455 x 455 m.m.	29500	34500
455 x 455 x 605 m.m.	38000	41750
605 x 605 x 605 m.m.	51500	55250
605 x 455 x 910 m.m.	61250	66250
605x 605x 910 m.m.	73500	78500
Optional Accessories:
Programmable Graphic LCD Controller cum display

Additional Information:

• Item Code: APS-113
