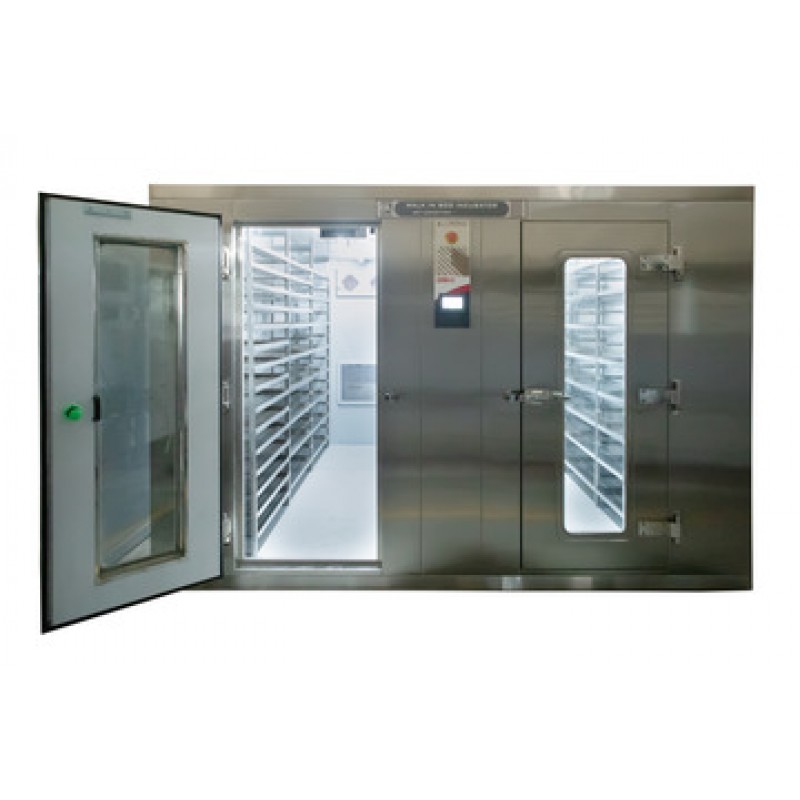

WALK - IN INCUBATOR
Product Details;
Models | Cap. in liters | Internal size in mm | External size in mm | Rack Qty. | Tray Qty. | Tray size in mm | Connected load |
---|---|---|---|---|---|---|---|
AO/WI-400 | 4000 | 2000WX1000DX2000H | 2160WX1630DX2200H | 2 | 10 | 730WX625DX30H | 2.5 KW |
AO/WI-600 | 6000 | 2000WX1500DX2000H | 2160WX2130DX2200H | 4 | 20 | 600WX625DX30H | 2.75 KW |
AO/WI-800 | 8000 | 2000WX2000DX2000H | 2160WX2630DX2200H | 4 | 20 | 850WX625DX30H | 2.75 KW |
AO/WI-1000 | 10000 | 2000WX2500DX2000H | 2160WX3130DX2200H | 6 | 30 | 720WX625DX30H | 2.75 KW |
AO/WI-1200 | 12000 | 2000WX3000DX2000H | 2160WX3630DX2200H | 6 | 30 | 885WX625DX30H | 2.75 KW |
AO/WI-1600 | 16000 | 2000WX4000DX2000H | 2160WX4630DX2200H | 8 | 40 | 905WX625DX30H | 3.5 KW |
AO/WI-2000 | 20000 | 2000WX4000DX2500H | 2160WX4630DX2700H | 8 | 48 | 905WX625DX30H | 4.0 KW |
AO/WI-2500 | 25000 | 2300WX4500DX2500H | 2460WX5130DX2700H | 10 | 60 | 815WX750DX30H | 4.0 KW |
AO/WI-3000 | 30000 | 4000WX3000DX2500H | 4160WX3630DX2700H | 12 | 72 | 885WX625DX30H | 5.0 KW |
AO/WI-4000 | 40000 | 4000WX4000DX2500H | 4160WX4630DX2700H | 16 | 96 | 905WX625DX30H | 5.0 KW |
AO/WI-5000 | 50000 | 4500WX4500DX2500H | 4660WX5130DX2700H | 20 | 120 | 815WX725DX30H | 6.75 KW |
* Custom built Chambers are available in any dimensions and capacities.
Standard Chamber Features & Provisions:
Construction: PCGI/SS304/SS316 Tongue & Groove Type Panels with PUF Density of 40Kg/m3 with thickness of 80 mm.
Sample Storage:
Racks: Heavy Duty SS304 frame secured firmly to chamber inner walls for strength.
Trays: Perforated types (CNC punched). Strengthened with support rails to prevent deformations.
Door: PUF Insulated door with Full View double layered Toughened Glass, mounted with imported hinges & locks.
Door Operation: Passcode protected door operation - from software & HMI
Control System:
Ergonomically designed control panel.
Ferrule printed wiring.
Advanced PLC program with built in processor-based Auto Tuning.
4.3” HMI Color LCD Display.
Built in Redundancy & Safety.
Advanced High Accuracy “Transmitter based sensors” with output of 4-20 mA.
Temperature Control:
Efficient, Reliable, Time tested & Trustworthy refrigeration design.
Built in redundancy with PLC based Auto Change Over during power outage &/or component failure viz: Compressor.
PLC Controlled “U” Shaped SS Air Heater Banks.
Safety: Dedicated Thermostats for all key points: Chamber High Temperature, Utility High Temperature
PLC Safety Cut Off for Temperature: High, Higher & Low, Lower safety cut off .
Human Safety: “Person Trap” button provided inside the chamber, which triggers Audio Visual alarm. The button enables the trapped person to come out even if the door is physically locked from outside
Emergency Stop: button provided from outside.
Incubator Is a device in which incubation process is done, an enclosure conditioned to a predetermined temperature to provide and maintaining an artificially created optimal conditions for growth of microbial culture.
Incubation is process -a period of time in which temperature and other environmental variables are provided at a desired temperature level for the growth and development of microbial culture.
every organism has an incubation period for its growth and development. If incubation is not provided it will result in degenerated the growth of an organism, therefore incubation is an important aspect for the proper growth and development.
Incubator those works at low temperature are used for “incubation” of biochemical reactions
Industries like pharmaceutical, research laboratories, agriculture, Food & beverages requires a Cooling Incubators
Allyone’s top of the line Cooling Incubators are the most preferred choice to maintain accurate temperature & its uniformity throughout the chamber for incubation where high degree of constant temperature accuracy is required.
Incubators are mainly used for the growth & storage of bacterial cultures, Media Preparation, gentle incubation & conditioning and other purposes.
