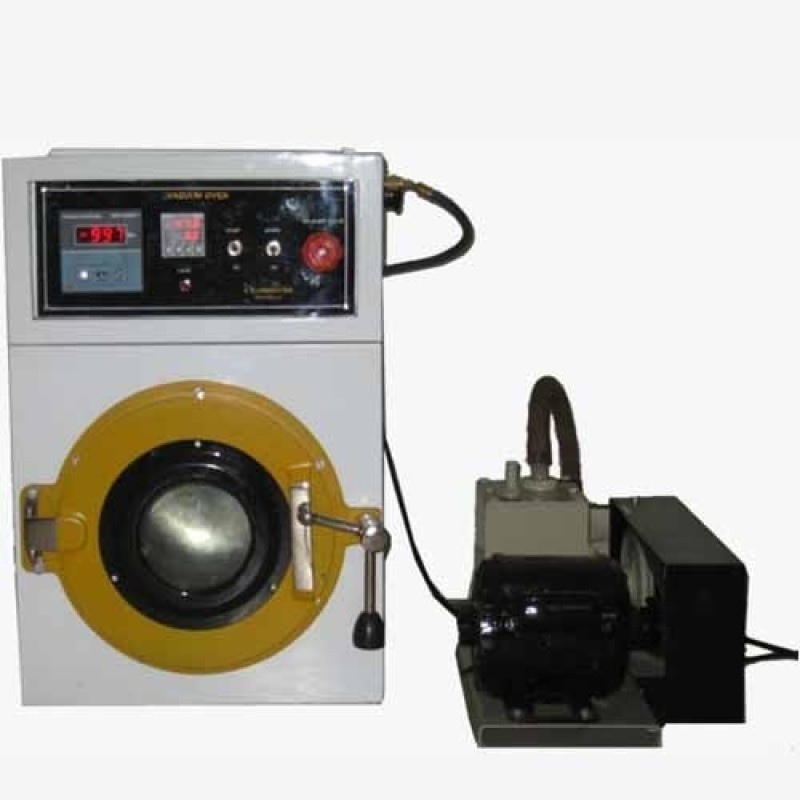

Water Absorption Test Apparatus (Vacuum Oven)

Product Details :

Vacuum pump is not part of the equipment .May be procured directly by the user.We can help in sourcing the pump.

The outer body is made of mild steel sheet. The inner chamber is made of Stainless steel and heaters are clamped to its outside walli and operated at low heat. Glasswood insulations is used between the two walls. Temperature control is provided by a P.I.D Controller with PT - 100 sensor having excellent durability and accuracy. The oven is fitted with a digital vacuum gauge readable in MILIBAR SCALE.An inlet is provided for application involving the use of an inert gast. The inlet can be closed when gas is not used. Mains on and Heaters on indicating lamps are provided. Electrically Operated at 230 V AC, Single Phase, 50 Hz supply.Inner Chamber Dimensions: 25 cm dia x 30 cm depth or 30 cm x 30 cmTemp. Range: 50 - 150 C

• Exterior finish: White
• Working Chamber: S.S, Buffed and polished
• Input Power: 500 Watts
