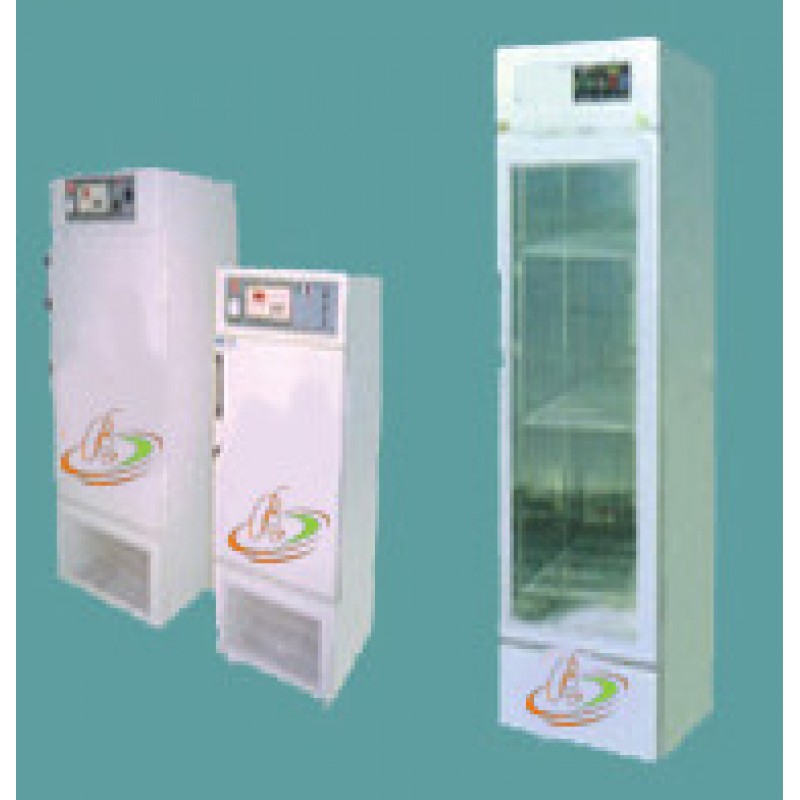

Zonotech BL-BOD Incubators & Cold Cabinet
TECHNICAL SPECIFICATION
- Double-walled inside Stainless Steel / Aluminium, outside made of mild steel Duly painted with Insulation of 75mm
- Chamber with shelf supports, allowing wide range of shelf positions & spacing. Supplied with removable perforated Stainless Steel/Aluminium shelves.
- Full view inner Acrylic door allows inspection of sample without disturbing temp. , ofworking chamber.
- Outerdouble walled metal doorwith MAGNETIC GASKET LOCK & KEY.
- Door operated illumination lamp.
- Cabinet mounted on Castorwheels. forease of movement.
- Temp. is controlled by Microprocessor Digital Temp. lndicatorcum controller. Air circulating system is provided by F.H. Motors with fan which keeps uniform temp.through outthe chamber.
- In B.O.D. Cooling Incubator a quite running sealed. CFC FREE Compressor (ISI marked) with all its protective devices along with a fan cooled condensing unit is placed below the working chamber.
- Control Panel is provided at the top of cabinet with three nos. indicator for Main, Heating & Cooling,Voltmeter etc.
ILLUMINATION:(OPTIONAL)
- Chamber illumination with 3 nos. fluorescent tubes of 60 cm length (3Ocm length in 4cu. ft.) placed vertically along the black wall. Separate ON/OFF switch for tubes and min. temp. can be obtained from 10 to 50°C when all theTubes are ON. With Timer 0-24 hours for regulating cyclic illumination condition fixed on the top ofthechamber.
COLD CABINET
- These cabinet are designed for storing of culture, specimen & regents in laboratories.
- Inside made of stainless steel with adjustable shelves.
- Frost free chamber
- Full view front glass door.
- Microprocessor digital temp.Indicator cum controller with audio visual alarm for varition in temp.
