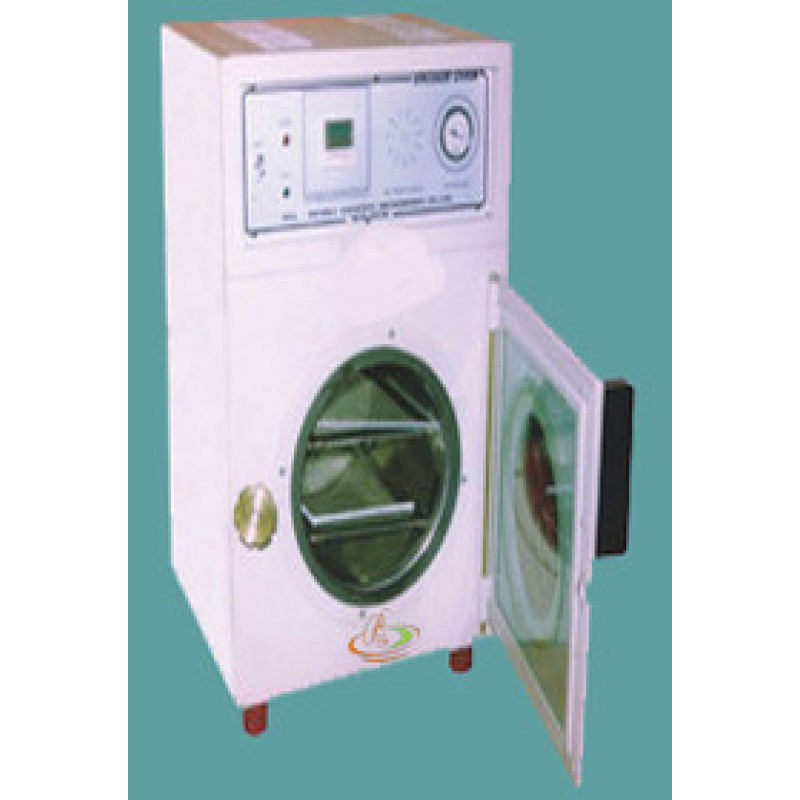

Zonotech Vacuum Oven

Product Details :

• Microprocessor-based Vacuum ovens are accurate and reliable. Proportional Integral Derivative (PID) temperature control system continuously monitors rate of temp. change, eliminating temperature overshootand undershot.
• Heaters are embedded on the periphery of the chamber. providing excellent temperature uniformity and quick heating times.
• The gap between the inner and outer wall is filled with special grade glass wool insulation.
• Outer body is made of mild steel finished in attractive powdercoating and innerchamberof stainless steel, with 2 Nos. wire mesh trays.
• Moulded. Joint less door gasket and knob ensure a tight seal.
• Fitted with bourden type dial gauge of range 0-30" Hg.
• Gas valve allows evacuation & venting.
• The front door has heat resistant glass window. for allowing viewing ofsamples.

(# WITH OUT VACUUM PUMP)

Model        Temp Range        Temp Accuracy

BV-1            50°c to 130°c              ±1°c

BV-2            50°c to 250°c              ±1°c

BV-3            50°c to 300°c              ±1°c
