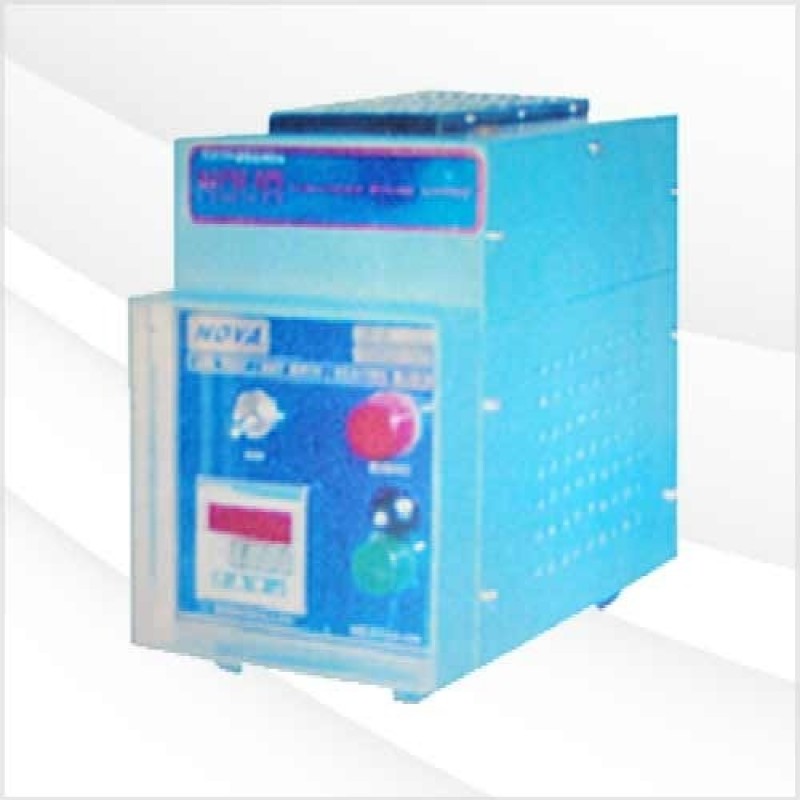

Click Image for Gallery
Specifications:
- Automatic
- Microprocessor Based Digital Auto Tune Pid Control
- Temperature Range : 5 Deg. C Above Ambient To 37 Deg. C/50 Deg. C For Standard Model.
- Model For 90 Deg. C & 110 Deg. C Available Optionally.
- Temperature Resolution : 0.1 Deg. C.
- Temperature Control Accuracy : +/- 0.2 Deg. C Or Better.
- Sensor : Pt-100 Type.
- Acrylic Door With Lock & Key To Prevent Accidental Alternation Or Disturbance To Set Temperature.
- Unit Will Be Supplied With 3 Alum. Block Interchangeable Having 15 Holes Of 10.6mm Approx.
- Total Capacity 45 Wells Of 10.6mm Dia.
- Other Capacity/Wells Available Optionally.
- Specially Designed Heater For Uniform Temperature Heavily Insulated With Cerwool.
- Powder Coated Outer Chamber.
Application:
- Pharmaceutical
- Quality Control
- R & D
- Bio-Medical
- Dyes & Chemical
- Industrial Research Laboratories
Control Panel:
- Mains On/Off Switch
- Mains Indicator
- Digital Pid Controller – Microprocessor Based.
Available Models:
- Micro-Control Based Or
- Microprocessor Based Pid Or
- Microprocessor Based Programmable Control
- Capacity : 45 Wells Standard. 60, 75, 90 Wells Optionally.
- Special Note : Iq, Oq, Pq Will Be Provided On Request.
All The Controller Are Provided With Test & Calibration Reports From Our Associate M/S.Nova Calibration Centre With Traceability To National Standard.
