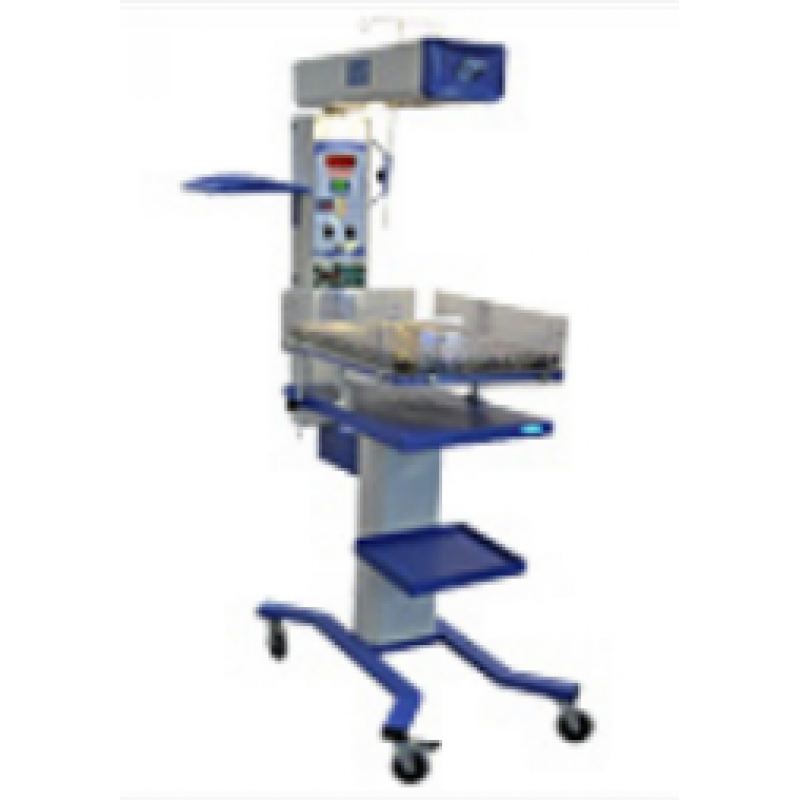

Infant Radiant Warmer

Features
Advance micro processor controlled system with self check on the electronic
circuitry skin / Air Manual Control.
Digital display of baby temperature / Air temperature. Soft touch display of control
temperature.
Manual / Servo two function control modes provide the clinician more flexibility
while optimizing the thermal environment.
In addition, the Skin / Air temperature display is larger than the other set
temperature display.
Skin temperature can be converted from Celsius into Fahrenheit by the push of a
button.
The spacious baby bed incorporates easily drop down sides for maximum access
to the baby.
The control panel is also the heart for a completely integrated alarm system with
both audible and visual indicators in the event of
Probe failure.
Skin High.
Skin Low.
Power Failure.
Heater Failure.

Manual Mode

• Facility of converting the warmer from servo mode into manual mode for nonstop working.
• In manual mode warmer will start from 40% heat and can be increased upto 99% according to usage.

Baby Bed
The spacious baby bed incorporates easily drop down / fold down glasses for
maximum access to the patient.
Optional: X-Ray facility is provided below the baby bed for taking X-ray of the baby
without disturbing.

Heater Assembly
The heater assembly located above the centre of the support structure consists of
an integral examination light and a 650 watt heating system (Silica Infrared Heater
/Ceramic Heater) for quick warming and even distribution of heat on the baby bed.
The heater can be swivelled in either direction for taking X-ray and doing
procedures.

Castors
The system is fitted with 4” high quality castors having brakes in the 2 front castors.
Antistatic castors can be fitted as on option for further safety in lieu of the standard
castors.

Highlights of the Product
The unit is designed in such a way that the main control system can be swivelled to
the other side for access from all the four sides to the patient in critical condition.
Optional:The system comes with check baby alarm (1 – 120min.)
