Integrated Chamber
Product Details:

Temperature (Deg. Celsius)	-70 to +180 Degree Celsius
Humidity (%)	10%-95%
Two Pluggable Holes	75mm and 125mm
Port Holes	Plug-gable
Viewing Window	300mm x 300mm

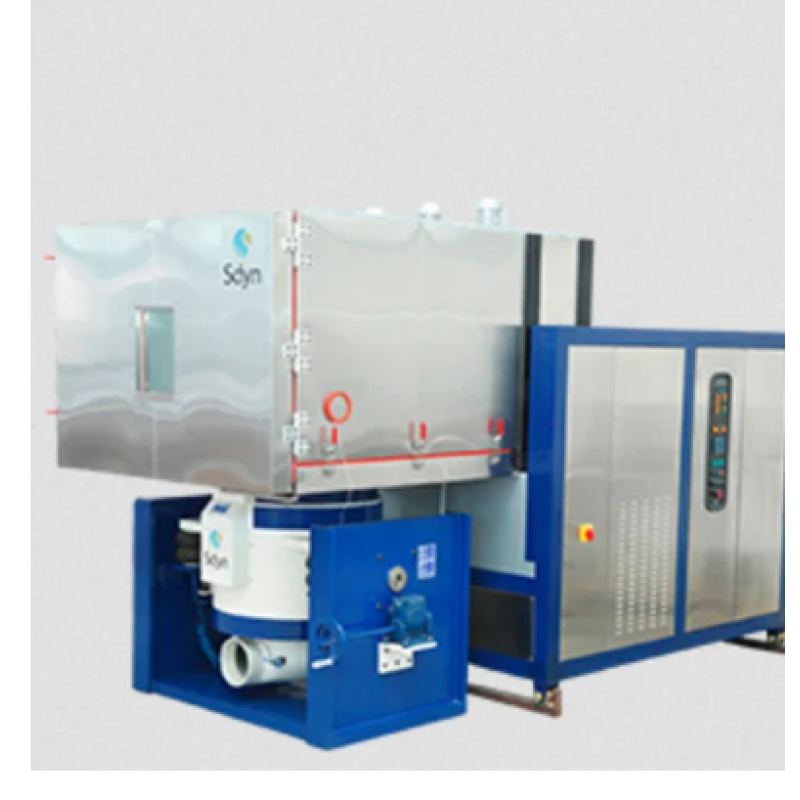

An Integrated Chamber can be integrated with a Vibration System for Environmental Stress Screening (ESS). It has all the performance characteristics and features of the Standalone Chamber along with a detachable base. The base can be solid for standalone operation, has a round hole for shaker (Z axis) integrated operation, or has a square hole for HST (X & Y axis) integrated operation. For 3 axis integration, the refrigeration circuit uses flexible pipe in order to allow vertical movement of the working volume. The working volume itself is mounted on guide rails and screw jack to allow smooth movement.
then the Integrated Chamber can be air cooled or water cooled as per the customer's requirements.
