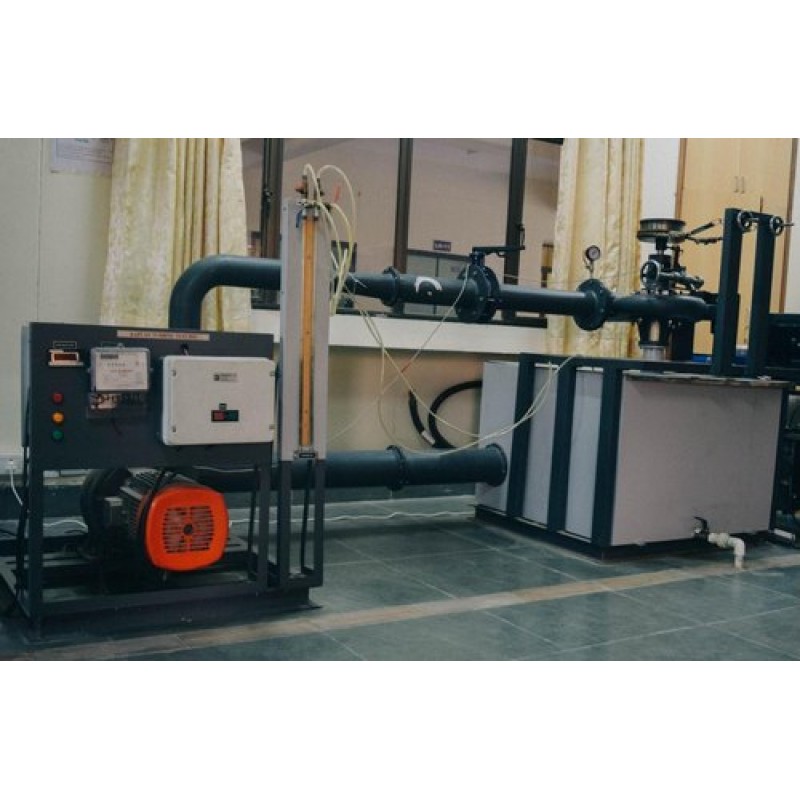

Kaplan Turbine Test Rig (output Power 3 Kw )

Product Details:

Country of Origin	Made in India
brand name	saini
model number	SSIFMHL-017B
- Output power	3 KW.
- Discharge	6000 LPM (approx.)
- Supply head	5 meter
- Speed	1500 RPM (approx.)
- Dynamometer	Rope brake drum type , drum diameter 300 mm.
- Sump tank	Capacity 700 liters approx. (stainless steel material )
- Water circulation	Centrifugal pump , 20 HP , three phase, standard / kirloskar /Crompton makes
- Pressure gauge	Bourdon type , range 0-7 kg/cm2
- Discharges measurement	Venturi meter with differential pressure manometer.
- Tank material	stainless steel material
- Pipe fitting	GI pipe.

SAINI SCIENCE INDUSTRIES manufacture of Kaplan turbine test rig. (Output power 3 KW).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Kaplan turbine test rig. (Output power 3 KW). Kaplan Turbine is an axial flow reaction turbine named in honour of Dr. B. Kaplan, a German Engineer. This turbine is suitable for low head. The power produced by a turbine is proportional to QH. As the head (H) decreases the discharge (Q) must increase to produce the same power. The present set-up consists of a scroll casing housing a runner. Water enters the turbine through the stationary guide vanes and passes through the runner axially. The runner has a hub and airfoil vanes, which are mounted on it. The water is fed to the turbine by means of Centrifugal Pump. The runner is directly mounted on one end of a central shaft and other end is connected to a brake arrangement. A transparent hollow cylinder made of acrylic is fitted in between the draught tube and the casing for observation of flow on to the airfoil vanes. This runner assembly is supported by thick cast iron pedestal. Load is applied to the turbine with the help of drum brake arrangement so that the efficiency of the turbine can be calculated. The set-up is supplied with control panel. Pressure and Vacuum gauges are fitted at the inlet and outlet of the turbine to measure the total supply head on the turbine.
