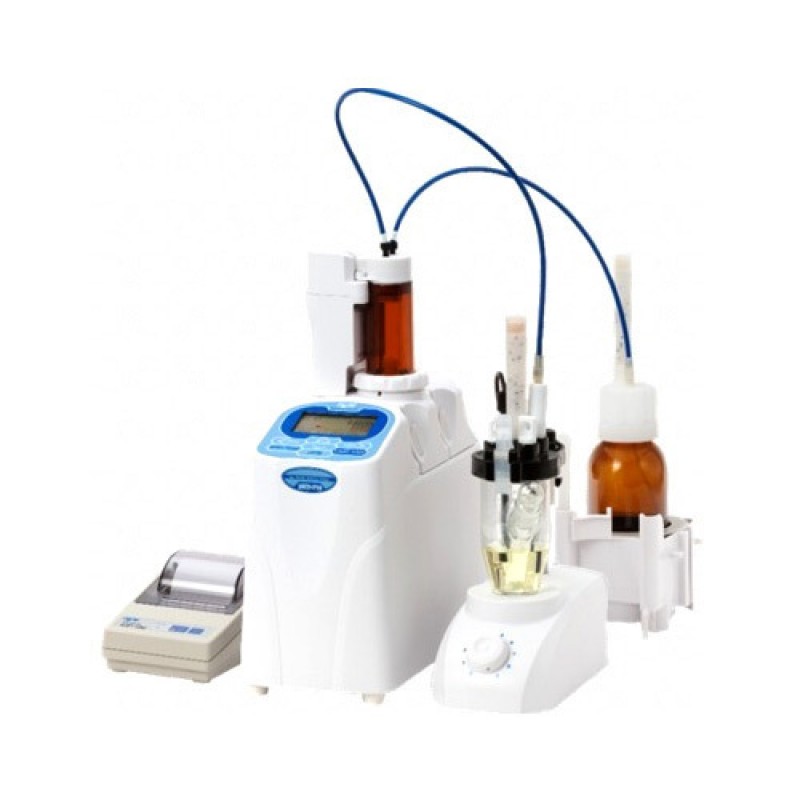

Karl Fischer Titrator
Click Image for Gallery
Karl Fischer Titrator

Karl Fischer Titrator

Product Details :

ApplicationLaboratory Use
BrandKarl


Specifications :

TypeKarl Fischer Moisture Titrator
ModelMKV-710B
Product configurationMKV-710+IDP-100+Automatic Solvent Change unit
Measuring methodKarl Fischer Volumetric titration
Measuring range1) Water content : 0.1 to 500mgH2O (depends on KF reagent factor)
2) Concentration : 10ppm to 100%H2O
Burette precision10mL burette +/- 0.015mL ; reproducibility +/- 0.005mL
Endpoint detectionBy polarized potential level detected with a twin platinum electrode
EP sense methodDetection of potential level maintained during preset end time.
End time range : 1 to 99s
Titration formNormal titration / Back titration (Option additional burette required)
Required solvent30 to100mL (in S-type titration vessel)
Method20
Key operationSheet key
Displays1) Black and white LED-backlit LCD
2) English / Japanese / Mandarin Chinese / Korean / Russian / Spanish
3) 1-channel display
CalculationConcentration of water content , statistics data processing (mean , SD and RSD) and automatic averaging of blank value and factor value
Data storage100 samples
GLP conformanceRegistration of operator /Record of check results / Record of factor measurement / Management of conduction time
External I/ORS-232C port x2 :
for Dot matrix printer , Electronic balance , Data Capture Software (SOFT-CAP)
USB×1 :
for USB flash drive , Thermal printer , Keyboard , Barcode reader , Foot switch , USB HUB , Android device
ExtensibilityAutomatic piston burette : Can control max 2 burette drives
(Including two built-in burette drives)
Ambient condition
1) Temperature:5 to 35°C
2) Humidity:85%RH or below (no condensation)
Power sourceAC100 to 240V +/- 10% 50/60 Hz
Power consumption
Main unit:Approx. 20W
Printer:Approx. 7W
Dimensions
Titration unit:141(W) x 292(D) x 367(H) mm (not incl. tubing)
Stirrer:107(W) x 206(D) x 322(H) mm (not incl. Solvent Change unit)
Solvent Change Unit:240(W) x 140(D) x 400(H) mm (not incl. tubing)
Printer:106(W) x 180(D) x 88(H) mm
Weight
Titration unit:Approx.4.0kg
Stirrer:Approx.2.0kg
Solvent Change Unit:Aprox.0.6kg
Printer:Aprox.0.4kg
Conformity standardCE marking EMC : EN61326-1 LVD : EN61010-1 RE Directive
Burette unit EBU FCC Part15 SubpartC FCC ID : 2ABSVEBU01
