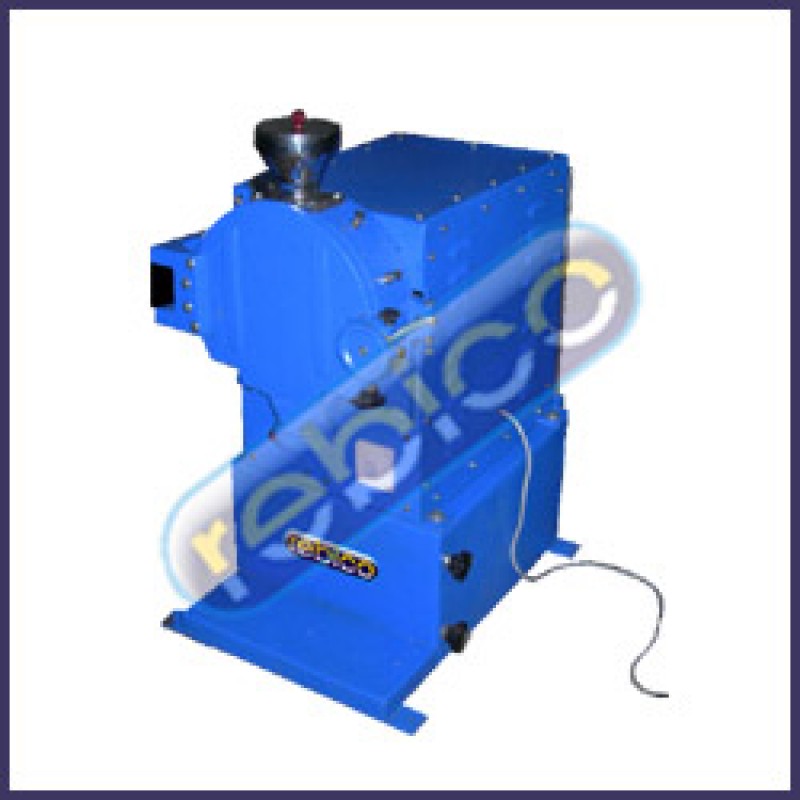

LAB WILLEY GRINDER ARTHUR H. THOMAS TYPE
Product Details:
For preparation of samples for analysis with minimum loss of moisture or volatile constituents. Recommended for grinding of dry plat samples. Weight distribution and balancing or rotating parts has been adjusted to provide greater stability and quieter performance with reduced vibration. Suitable for wider variety of commercial materials. Unit having tow stationary steel blades and rotary with steel edge provided in cast iron chamber. willey mill is fitted on substantial cast iron base. Fitted with suitable motor supplied with S.S. HOPPER with cover, three delivery sieves, having tops of 20, 40 and 80 mesh respectively with plastic receiver, brush, L-N Key. A removable flexi plate permits observation during operation. Suitable to operate on 220 volts, 1ph, 50 cycles A.C. Supply.

CAPACITY	MOTOR CAPACITY
40 x 25 mm	0.25 HP
65 x 25 mm	0.25 HP
75 x 25 mm	0.50 HP
100 x 50 mm	0.50 HP
200 x 75 mm	1.00 HP
