LOSSES IN PIPES FITTINGS (MINOR LOSSES) (FLM003)

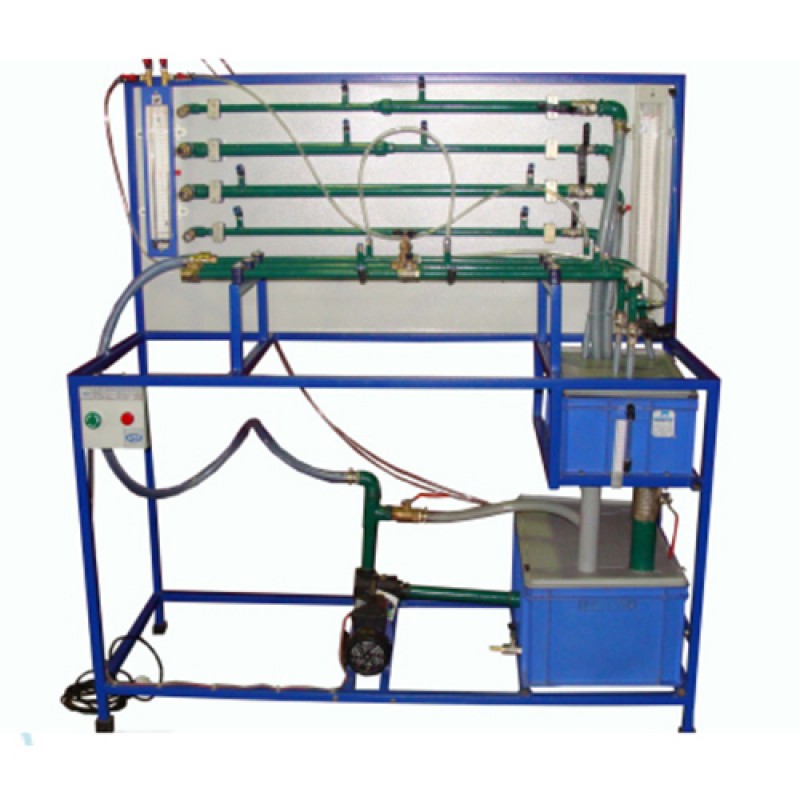

S P Tech Equipments module Losses In Pipe Fittings  is a self-sufficient unit in the determination of losses encountered during liquid flow through pipes, which occur due to the presence of bends, valves and enlarged and diminished cross-sections. The system is mounted on a vertical panel provided with castor wheels. The panel mounts a large number of pipes and fittings. Tappings are provided across each pipe fitting to facilitate measurement of head loss. The Test set up of the Trainer can be used along with the Hydraulic Bench (FLM0001), if ordered as FLM0003SU.
