Click Image for Gallery
Glass Measuring Cylinders
Our organization is counted among the reliable firms offering Glass Measuring Cylinders. Available with round or hexagonal base and in capacity from 5 ml. to 2000 ml. These graduated measuring cylinders are easily supplied as per class a and class b permissible volume tolerances with certificate of accuracy for class a. In addition to this, our range is provided with ground joint stoppers and ensure leak proof fitting.
Features:
- Easy operations
- User friendly
- Longer functional life

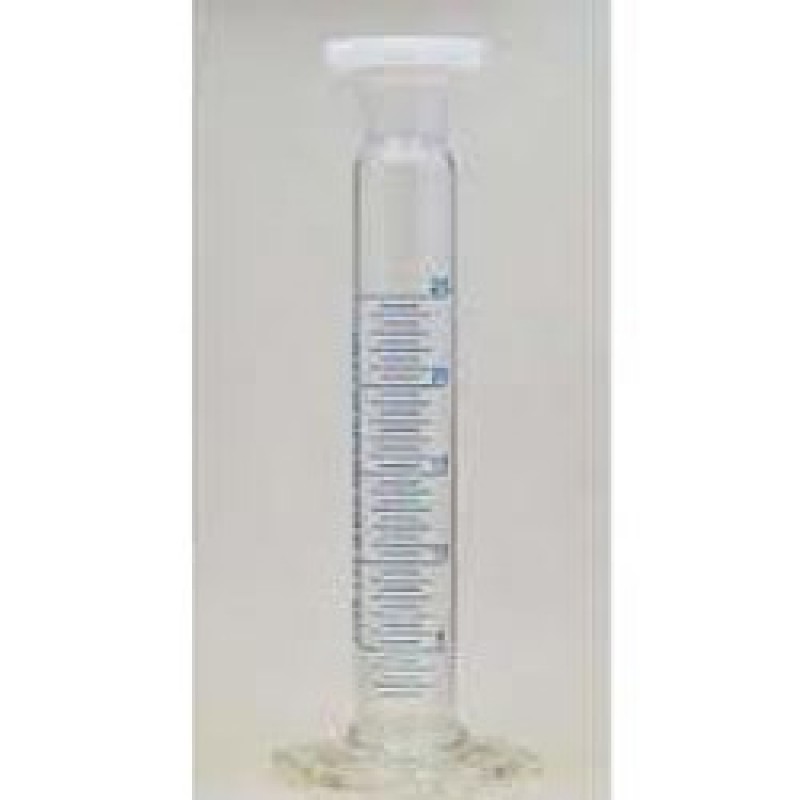

Hexagonal Base Measuring Cylinders
Specification:
Cat. Ref. | Capacity (ml.) | Tolerance +/- (ml.) |
CA 29/1 | 5 | 0.05 |
CA 29/2 | 10 | 0.1 |
CA 29/3 | 25 | 0.25 |
CA 29/4 | 50 | 0.5 |
CA 29/5 | 100 | 0.5 |
CA 29/6 | 250 | 1 |
CA 29/7 | 500 | 2.5 |
CA 29/8 | 1000 | 5 |
CA 29/9 | 2000 | 10 |
Crow Receiver Cylinder

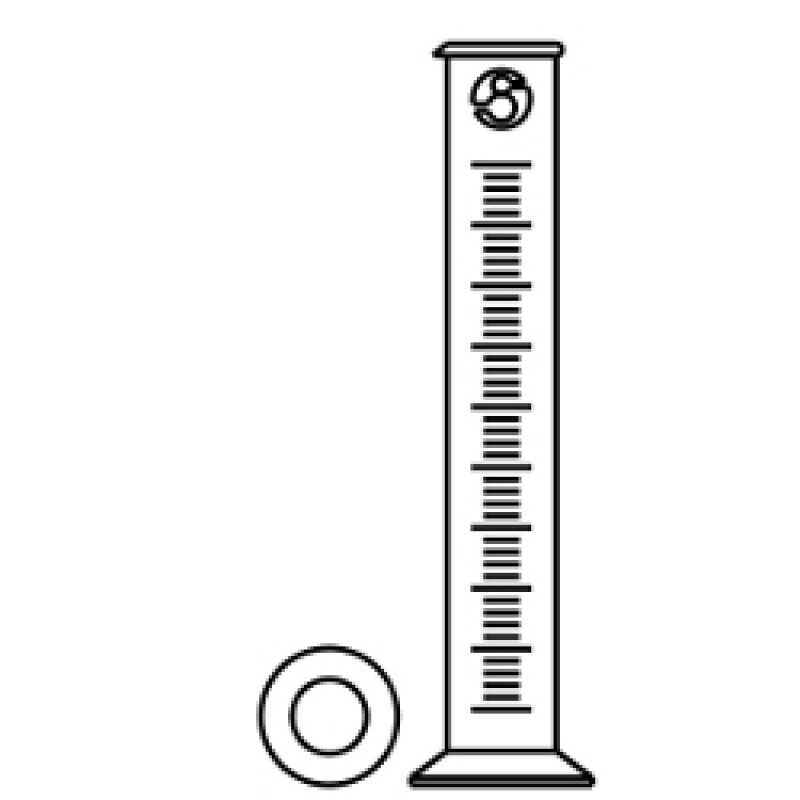

Measuring Round Base Cylinders
Specification:
Cat. Ref. | Capacity (ml.) | Tolerance +/- (ml.) |
CA 28/1 | 5 | 0.05 |
CA 28/2 | 10 | 0.1 |
CA 28/3 | 25 | 0.25 |
CA 28/4 | 50 | 0.5 |
CA 28/5 | 100 | 0.5 |
CA 28/6 | 250 | 1 |
CA 28/7 | 500 | 2.5 |
CA 28/8 | 1000 | 5 |
CA 28/9 | 2000 | 10 |

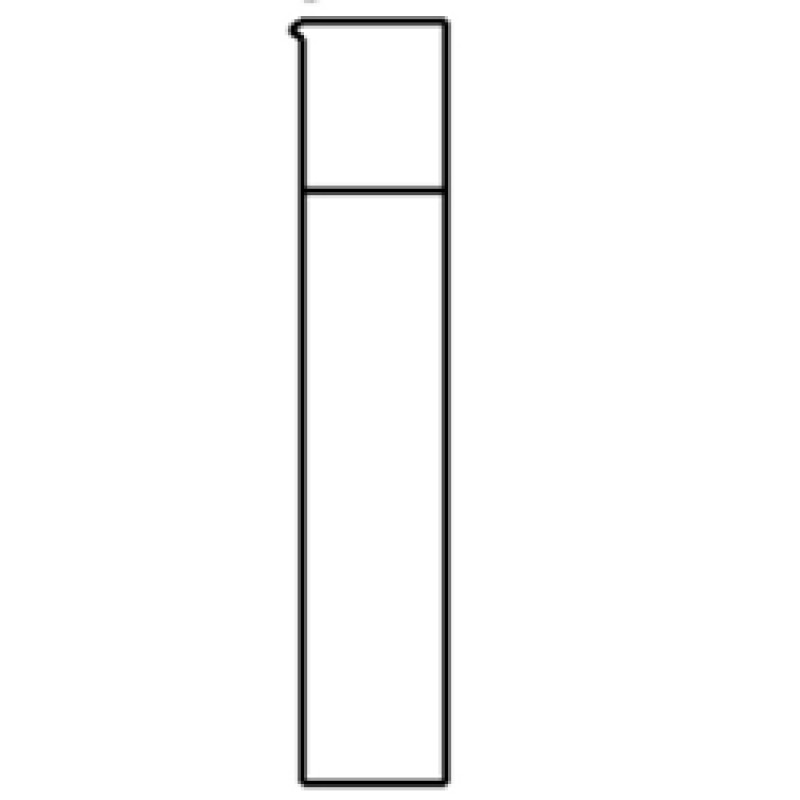

Graduated Flat Nessler Cylinders
Product Details:
- Application Chemical Laboratory
Specification:
Cat. Ref. Cap. (ml) Size O.D. x Height (mm.)
C 25/1 50 26 X 150
C 25/2 100 34 X 180

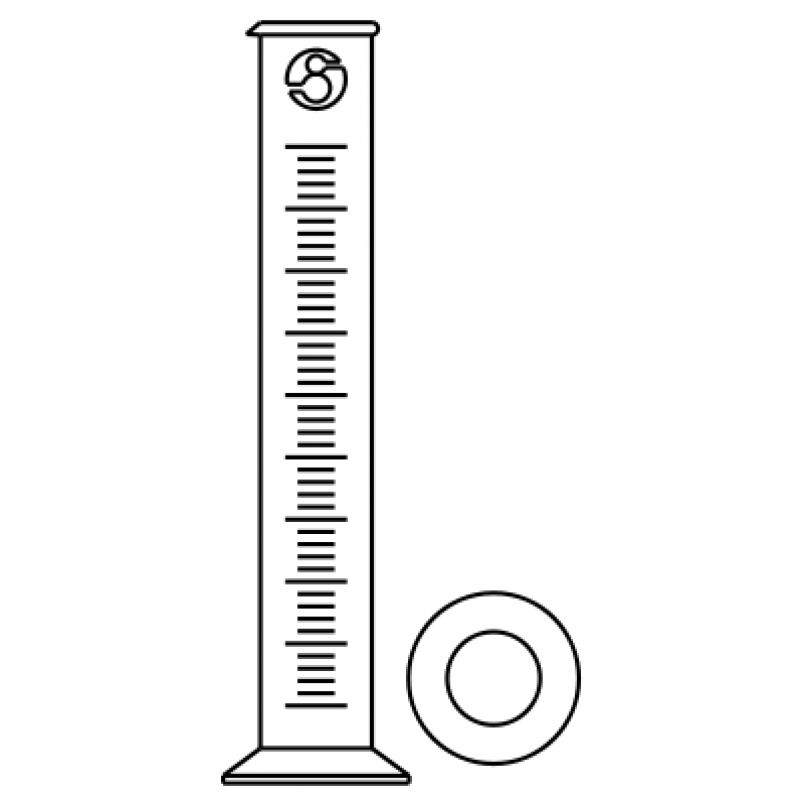

Cylinders Graduated With Pour Out
Specification:
Cat. Ref. | Capacity (ml) | Graduation Interval (ml.) | Tolerance +/- (ml.) |
C 28/1 | 5 | 0.1 | 0.1 |
C 28/2 | 10 | 0.2 | 0.2 |
C 28/3 | 25 | 0.5 | 0.5 |
C 28/4 | 50 | 1 | 1 |
C 28/5 | 100 | 1 | 1 |
C 28/6 | 250 | 2 | 2 |
C 28/7 | 500 | 5 | 5 |
C 28/8 | 1000 | 10 | 10 |
C 28/9 | 2000 | 20 | 20 |

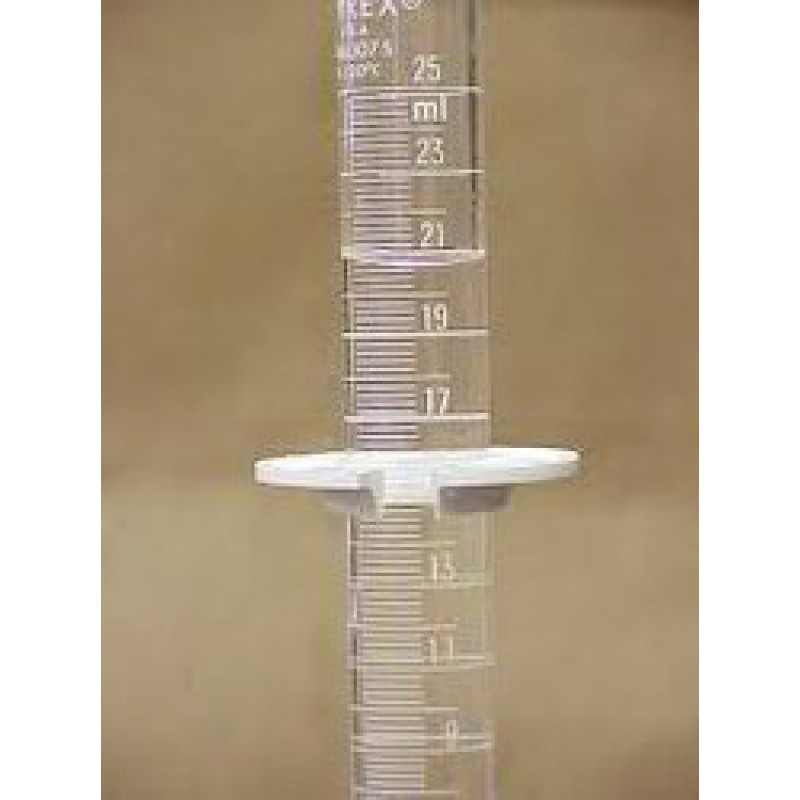

Cylinders Graduated with I.C. Stopper
Product Details:
Application | Chemical Laboratory |
Specification:
Cat. Ref. | Capacity (ml) | Graduation Interval (ml.) | Tolerance +/- (ml.) | Stopper Size |
C 27/1 | 5 | 0.1 | 0.1 | B-10 |
C 27/2 | 10 | 0.2 | 0.2 | B-10 |
C 27/3 | 25 | 0.5 | 0.5 | B-14 |
C 27/4 | 50 | 1 | 1 | B-14 |
C 27/5 | 100 | 1 | 1 | B-19 |
C 27/6 | 250 | 2 | 2 | B-24 |
C 27/7 | 500 | 5 | 5 | B-24 |
C 27/8 | 1000 | 10 | 10 | B-34 |
C 27/9 | 2000 | 20 | 20 | B-34 |
Hexagonal Base Cylinders Graduated with I.C. Stopper
Specification:
Cat. Ref. | Capacity (ml.) | Tolerance +/- (ml.) |
CA 27/1 | 5 | 0.05 |
CA 27/2 | 10 | 0.1 |
CA 27/3 | 25 | 0.25 |
CA 27/4 | 50 | 0.5 |
CA 27/5 | 100 | 0.5 |
CA 27/6 | 250 | 1 |
CA 27/7 | 500 | 2.5 |
CA 27/8 | 1000 | 5 |
CA 27/9 | 200 | 10 |
Round Base Cylinders Graduated with I.C. Stopper
Product Details:
Application | Chemical Laboratory |
Specification:
Cat. Ref. | Capacity (ml.) | Tolerance +/- (ml.) |
CA 26/1 | 5 | 0.05 |
CA 26/2 | 10 | 0.1 |
CA 26/3 | 25 | 0.25 |
CA 26/4 | 50 | 0.5 |
CA 26/5 | 100 | 0.5 |
CA 26/6 | 250 | 1 |
CA 26/7 | 500 | 2.5 |
CA 26/8 | 1000 | 5 |
CA 26/9 | 2000 | 10 |
Cylinders Graduated with I.C. Stopper
Measuring Cylinders
