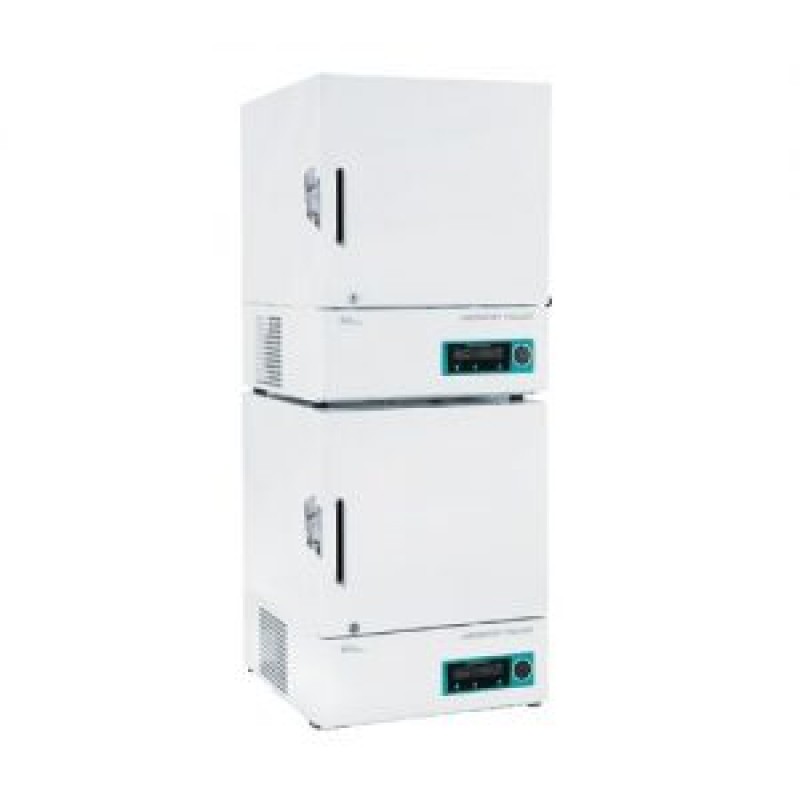

Laboratory Freezers (FMG Models)
Product Features:
A variety of freezer models for subzero degree storage of your sensitive lab material with innovative defrost system
Performance
- Excellent freezing control down to minimum -25°C
- Fully insulated chamber ensuring minimal chamber’s temperature fluctuation
- High thermal efficiency evaporation system, made of low corrosive materials
- Dual defrost systems
- Innovation auto-defrost system automatically activated on detecting amount of frost accumulated in the evaporator
- Additional manual defrost system for immediate frost removal
Convenience
- Four-temperature different freezing models cover various storage application
- Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons
- Easy temperature unit conversion between ℃ and ℉
- Air-tight door seal and lockable door latch enhances tightness to door closure
- High-quality 304 grade stainless steel interior
- Efficient internal space use with height adjustable wire shelves
- Dedicated stand with casters and stacking kit use in labs with limited space (optional)
- Three types of recorders to choose from (optional)
-Dot recorder (6 point)
-Chart recorder (6”, 24hr/7days)
-Thermal line recorder
Safety
- High/low temperature protection, Over current protection
- Open door alarm and automatic fan stop interlocked with door opening for minimization of heat loss
- Keypad lock function, Built in door lock with a key
Product Description :
For temperature range from -25℃ to -15℃
Model | FMG-150 | FMG-300 | FMG-650 | |
Chamber volume(L / cu ft) | 154 / 5.4 | 303 / 10.7 | 647 / 22.8 | |
Temperature range (℃ / ℉) | -25 to -15 / -13 to 5 | |||
Refrigerator(Hp) | 1/2 | 1/2 | 1/2 | |
No. of wire shelf(standard / max.) | 2 / 6 | 3 / 11 | 3 / 17 | |
No. of drawer shelf, slide (max., optional) | 3 | 5 | 8 | |
Max. load per shelf (kg / Ibs) | 26 / 57.3 | 30 / 66.1 | ||
Material | Interior / Exterior | Stainless steel #304 / Steel, 1 mm, powder coating | ||
Insulation | 100mm, Polyurethane foam | |||
Dimension (W×D×H) | Interior (mm / inch) | 550x570x490/21.7×22.4×19.3 | 550x550x1000/21.7×21.7×39.4 | 700x675x1370/27.6×26.6×53.9 |
Exterior(mm / inch) | 763x815x1055/30×32.1×41.5 | 765x760x1650/30.1×29.9×64.9 | 915x885x2020/36×34.8×79.5 | |
Net weight(kg / lbs) | 120 / 264.6 | 150 / 330.7 | 233 / 513.7 | |
Electrical requirements(230V, 50Hz) | 4.5A | 4.8A | 5.5A | |
Cat. No. | AAHE2202K | AAHE2212K | AAHE2222K |
