Glass Simple Distillation Assembly
Product Details :
Power Source | Electric |
Brand | shankar |

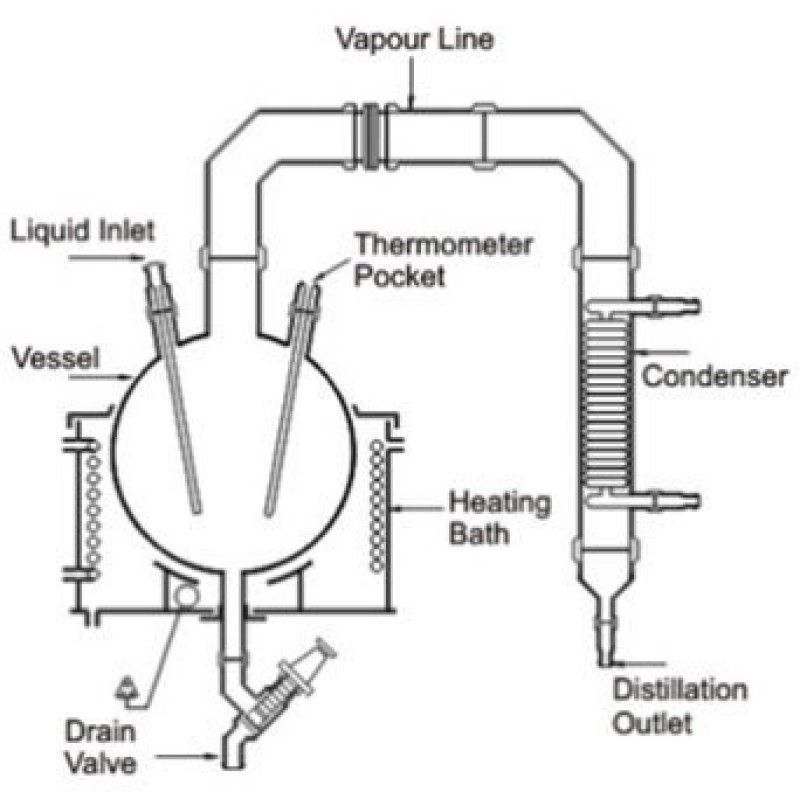

The unit is complete with a spherical vessel, drain valve, heating bath, thermometer pocket, liquid inlet, vapour pipeline and a coil condenser.
A receiver with drain valve can be added optionally. Refer Selection chart for different options available for heating bath, vessel and receiver.
The unit is available in vessel size of 20, 50, 100 , 200,300 Litre.
- Cylindrical / Spherical flask receivers
- Heating bath / Heating mantle
- Coil type condensers
- Manually operated / magnetically operated reflux divider
- Flush bottom /Drain type Valves
- Interconnecting glass pipelines, fitting, with PTFE 'O' Rings, Bellows etc.
- G.I. Tubular Supporting structure
Unit Cat.Ref. | Reactor capacity | Bath KW | Vapour Line | Condenser HTA M² |
SSWDU20 | 20L | 4.5 | 80DN | 0.35 |
SSWDU50 | 50L | 6 | 100DN | 0.5 |
SDWU100 | 100L | 9 | 150DN | 1.5 |
SSWDU200 | 200L | 12 | 150DN | 1.5 |
SSWDU300 | 300L | 15 | 150 DN | 1.5 |
