Nozzles On Vessels
Product Details :

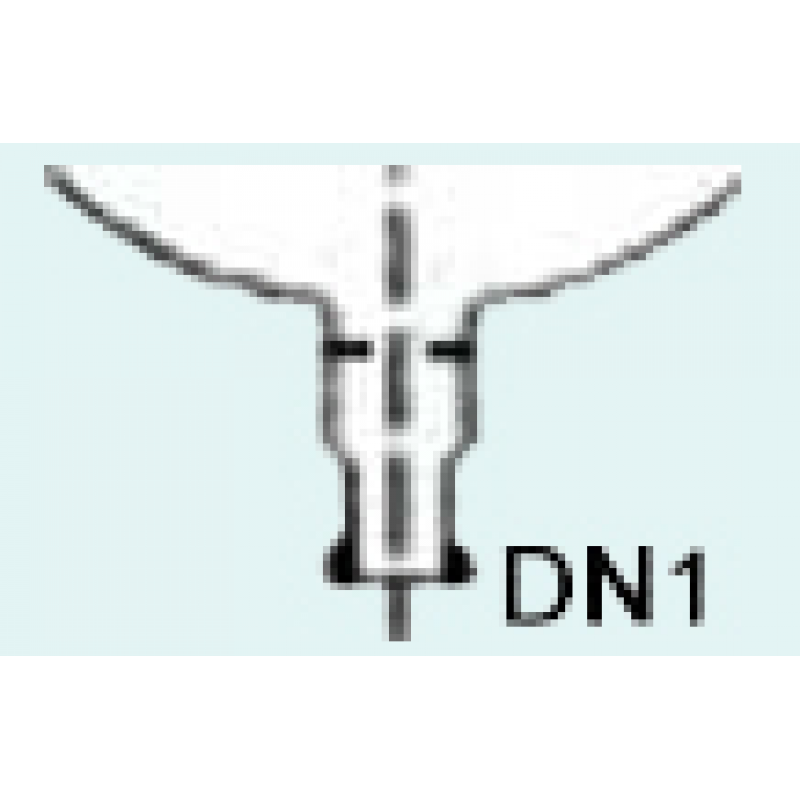

Standard nozzles with buttress ends are fixed on the vessels. The standard nozzles are indicated in section 2.2.1. The nozzle lengths (Projection) are as shown in the following Table.
Nozzle Size | Length of Nozzle | At Bottom | ||
DN | On Top | On Side | BOS | BOL |
25 | - | 50 | 75 | 125 |
40 | 100 | 75 | 100 | 175 |
50 | 100 | 75 | 100 | 175 |
80 | 100 | 75 | - | - |
100 | 150 | 100 | - | - |
150 | 150 | 100 | 150 | - |
225 | 250 | - | 200 | - |
300 | 250 | - | - | - |
BOL is long outlet for use with heating mantle or bath. BOS is short bottom outlet for receivers or other applications. The bottom outlets are also used for vessels with sealed in valve seat (BAS) to accommodate flush bottom outlet valve. Long bottom outlet (BAL) similar to BOL may also be used for a flush bottom outlet valve with nominal long neck nozzle.
