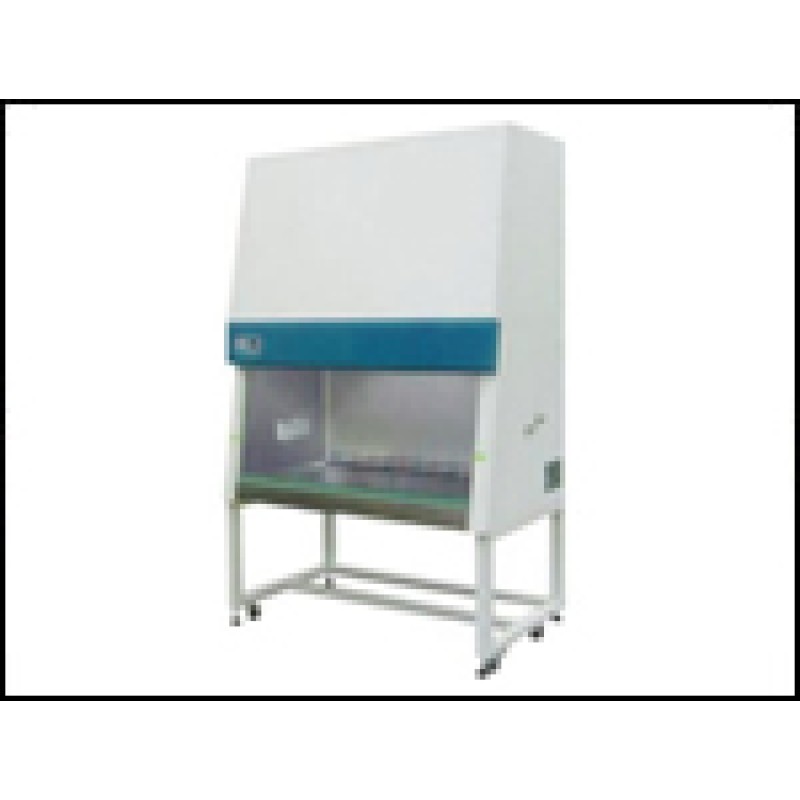

Bio-Safety Cabinet class II
Product details :
Working Area | 3’ x 2’ x 2’ | 4’ x 2’x 2’ |
Construction | CRCA Steel sheet 16G (powder coated). | |
Filtration I | Pre-filter non woven pleated (5 micron particles). | |
Filtration II | HEPA filter 0.3micron at an efficiency of 99.97% | |
Motor Blower | ¾ HP motor with aluminium curved impeller. | |
S.S. Work Table | 5mm perforation at 10mm pitch on front and rear
edges. | |
Work Surface | SS with perforation at 5”along the front and rear edges. | |
Manometer | differential pressure between the Hepa plenum and the
atmosphere. | |
Lighting | fluorescent lamps and U.V lamps with guard for eye
protection |
Special features:
• Flame umbrella made in S.S with gas cock & electric sockets at sides.
• Powder coated steel construction mounted on castor wheels with lock for mobility with Stability
• Protects the product and the user with zero contamination risk.
• Vertical laminar airflow with air intake across access opening.
• 20% air exhausted, via HEPA filter, 80% re-circulated into the sterile area.
• Negative pressure in all areas which are subject to contamination risk ensures, that even if a leak should occur in the sealing system, all particles will be returned to the pressure chamber and will be absorbed by the air circulation and the exhaust air filter.
• Special exhaust system: to throw the contaminated air in the atmosphere safely.
• Provides a comfortable sit down working position with foot rest.
• STAINLESS STEEL perforated grill to the hepa filter gives good protection.
• Full sliding clear polycarbonate door with adjustable heights.
• Single piece HEPA FILTER ensures against dead air space inside the working area.
Optional:
• Exhaust ducting with suitable fittings per running feet.
• Virus burn out unit: ensures total destruction of pathogens Present in air being exhausted from the cabinet.
