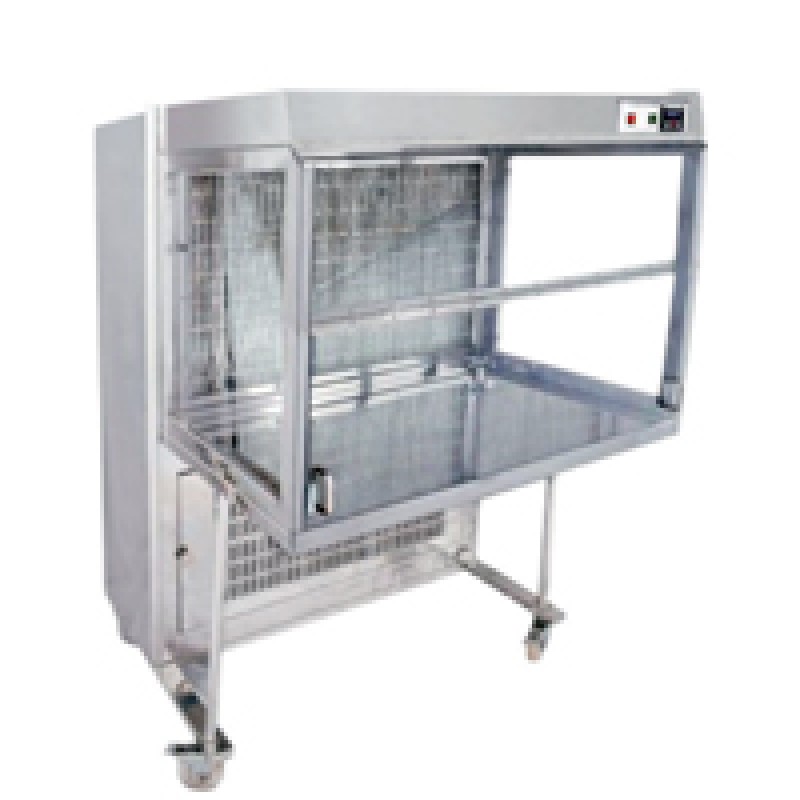

HORIZONTAL LAMINAR FLOW CABINET REW-161
Product Details :
- It
is used for various works that require maintenance of the cleanliness and
purity like plant tissue culture, examination and experimentation of
precision electronics parts, medical sciences, pharmacy, agriculture
sector and the like.
- Designed so as to meet the requirements of US
Federal Standard 209 B (BS 5295) providing particle free air to meet class
100 conditions.
- Cabinets is fabricated of Wooden board laminated
with sunmica OR cold rolled steel / PCGI duly powder coated OR stainless
steel (SS-304grade) (as ordered).
- Working table is made of Stainless Steel Sheet
(SS-304 grade).
- Side panels and front doors are made out of thick
transparent plexi glass.
- Air drawn through pre-filter is made to pass
through highly effective HEPA (High Efficiency Particular Air) filters
having efficiency rating as high as 99.99% with cold DOP and 99.97% with
hot DOP, thus retaining all air-borne particles of size 0.3 micron and
larger.
- Heavy Duty Motor operates with minimum noise level.
- Working area is illuminated by fluorescent lighting
fitted to the unit.
- Supplied complete with S.S. Satin finish Table Top,
Transparent front door, Static Pressure Manometer, Built in U.V.
Germicidal light and Cock for gas, air or vacuum line, HEPA filters and
pre-filter.
- The highly efficient HEPA filter maintains the
optimum cleanliness and purity.
- The prefilter fitted extends the life of HEPA
filter drastically.
- Silent Vibration-Free Blower ensures noiseless
operation and anti-vibration construction provides efficient working
environment.
- Interlocking of U.V. Germicidal Tube &
Fluorescent Light with auto switch off/on Mode for blower when the door is
closed/open.
- All units with MOC : Wooden/CRC/Stainless Steel are
mounted on a heavy duty mild steel stand duly powder coated.
- To work on 220/230 volts A.C. supply.
TECHNICAL SPECIFICATIONS
ORDERING INFORMATIONS
MODEL | #REW-22 | #REW-32 | #REW-42 | #REW-62 | #REW-82 |
Internal Workzone Dimension (LxDxH) (mm) | 600x600x600 | 900x600x600 | 1200x600x600 | 1800x600x600 | 2400x600x600 |
MOC (CABINET) | Wooden or Cold Rolled Steel (Powder Coated)/ PCGI or Stainless Steel (SS-304) | ||||
Work Table | Stainless Steel (SS-304 grade) | ||||
NO. of HEPA Filter | 1 | 1 | 1 | 2 | 2 |
Main filter | HEPA filter (99.97% efficient at 0.3 micron particle) | ||||
Prefilter | High efficiency prefilter | ||||
Illumination | Fluorescent Lamp 40W | ||||
Sterilizing | UV Germicidal Tube. | ||||
Front door | Made of plexi Glass (Polycarbonate Door Optional) | ||||
Utility | Gas/Air cock and multipoint 15/5 Amp. Electric socket | ||||
Supply Voltage & Frequency | AC 230V, 50/60 Hz |
OPTIONS
Front door made of TOUGHNED GLASS (Tempered) in lieu of plexi glass.
MODEL | #REW-22(H) | #REW-32(H) | #REW-42(H) | #REW-62(H) | #REW-82(H) |
Magnehelic
Gauge (To track filter pressure) in lieu of static pressure manometer.
Electronic
Filter choke alarm. (Differential pressure monitor
ULPA FIlter in
liew of Hepa Filter.
MODEL | #REW-22(U) | #REW-32(U) | #REW-42(U) | #REW-62(U) | #REW-82(U) |
Microprocessor
LCD Controller with Auto Switch off mode for motor blower when door is closed.
Digital buzzer timer sounds an audio alarm in completion of sterilizing time of
the chamber and the switches off U.V. germicidal tune and automatically
switches ON the fluorescent light, alerting the user that the bench is ready
for use.
