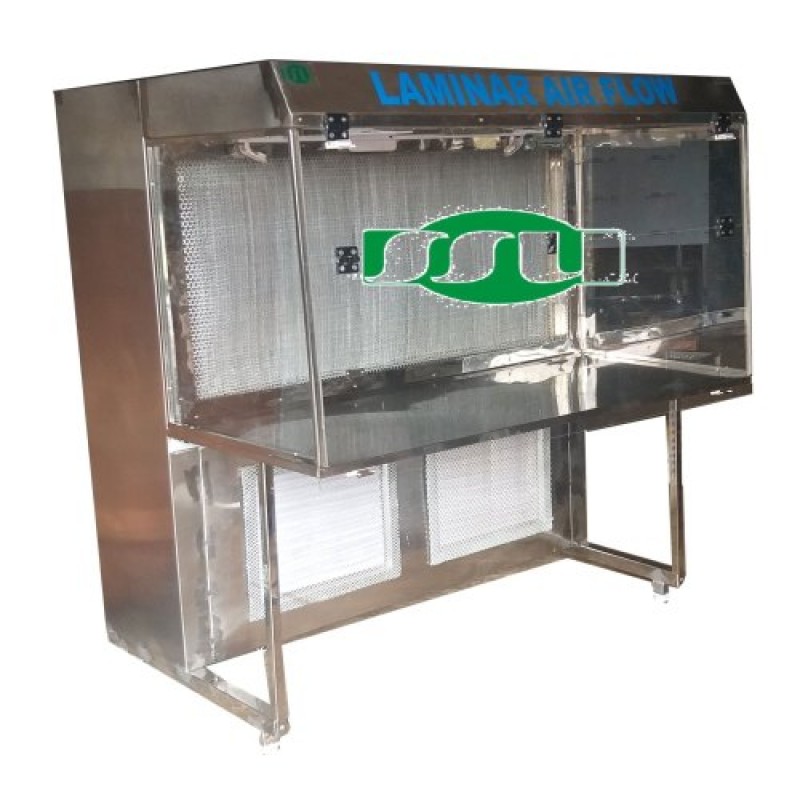

Horizontal Laminar Air Flow

Product Details :

LAMINAR AIR FLOW (HORIZONTAL)

Make: SSU.

Specification:

• The body is constructed in double walled S.S.
• The work table is made of stainless steel 304 grade.
• All joints are sealed with scholastic sealant.
• Transparent front and side panels of UV resistant Polycarbonate sheet fully transparent fixed with clamps.
• The unit is fitted with per-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filter having efficiency rating as high as 99.97% with cold, DOP, thus retaining all air-borne particles of size : 0.3 micron and larger.
• Using a dynamic machine, the blower and motor assembly ISI marked is statically and dynamically balanced.
• Blower Assembly with high RPM motor, enclosed in an SS casing suitably suspended in a pair springs & connected to the filter chamber through flexible canvas duct
• Blowers are mounted on vibration isolation mounts to Minimize vibration and possess noiseless operation.
• Height of the working table provides comfortable “ Sit Down” working position for the operation to work on 220/230 volts AC. Supply
• Individual controlling switch & indicator for blower, UV And fluorescent tubes.

Technical Details :

• Working Size : 4ft x 2ft x2ft (WxDxH)
• Table : SS 304grade Platform
• Pre Filter : Media Synthetic, non-woven polyester fibers (2nos)4ft x 2ft x6"of 10 micron
• HEPA Filters: Media Ultra clean glass fiber paper - imported down to 0.3 micron
• HEPA size : 3ft x 2ft x 6” (2nos)
• Retention :  0.3 Micron
• Efficiency :  99.97%
• Air Flow : Horizontal
• Door : UV resistant polycarbonate door in
• front facia with magnet lock
• Add on feature: Provision of cock ( air , vacuum) 1
• UV tube : 1x15W Philips
• Fluorescent tube: 1x15W Philips
• Blower Assembly :DIDW type ISI marked assemblymotors)
• Leg Levellers : To adjust by +/- 10 mm
• Noise level : >= 65 DB
• Manometer : 0-100 mm
• Power :220-230 Volts, 50 Hz Single Phase
• Micro proser based controller with UV light and florescent light and blower sapped controller.

Additional Information:

• Production Capacity: any capacity
• Delivery Time: 7 days
• Packaging Details: cartoon packing
