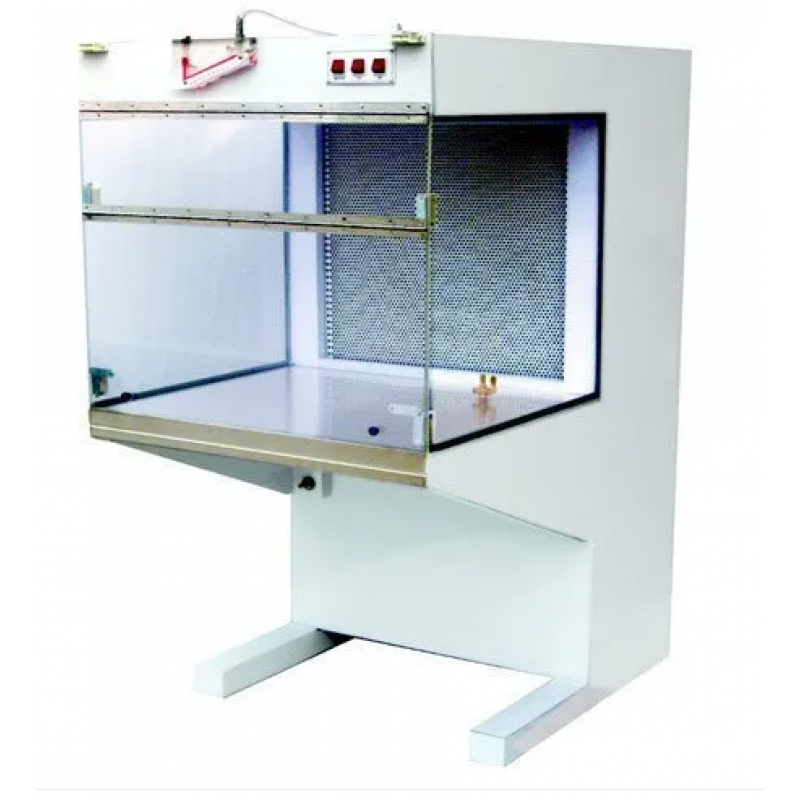

Horizontal Laminar Airflow

Brand	Cleanzar
Type	Horizontal
Material	PCRC Powder Coated
Surface Finish	Powder Coated
Usage/Application	Laboratory
Color	White & Blue
Voltage	220
Power Supply	Single Phase
Noise Level	less then 65 dBA
Temperature Range	N/A
Air Flow	0.5 m/sec.
Weight	120 KG
Illumination	Fluorescent & Ultra Violet Tubes
Frequency	50 hz.
Velocity	0.5 m/sec
Efficiency	99.999%
Surface Treatment	N/A
Working Area	Stainless Steel 304
Air Cleanliness	99.99%
Pressure Gauge	Manometer
Filtration	HEPA
Working Temperature	30
Model Name/Number	CI-LAFH-222
Electrical Socket	N/A
Max Opening	FULL OPENING
Design	HORIZONTAL
Front Window Type	FOLDING
Cabinet Material Grade	STAINLESS STEEL 304
Installation Type	N/A
Motor Blower Assembly	AVILABLE
Fan Motor	AVILABLE
I Deal In	New Only
Country of Origin	Made in India

Cleanzar's Horizontal Laminar Air Flow Horizontal Laminar Flow workstations are designed to protect the product within the work area from airborne particulates in the ambient air. The regulated efflux of custom made laminar airflow supplies the work zone with ISO Class 5 air cleanliness to offer the best product production by a clean bench in the industry. The Horizontal Laminar Flow workstations pushes the air through a HEPA filter and directs the filtered air horizontally over the work surface at a constant speed, toward the operator. Our versatile unit is useful for various works that require maintenance of the cleanness and purity like plant tissue culture, examination and experimentation of precision electronic parts, medical science, entomology, pharmacy, agriculture sector, seed science, veterinary science. Horizontal Laminar Air Flow generally have a taller and therefore a larger loading and working area. This allows for instruments, like microscopes to be placed inside. They are typically the preferred selection for plant tissue culture, media plate preparation, electronics inspection, medical device assembly and pharmacy drug preparation. Because they do not provide protection to the user, they should not be used in conjunction with biohazardous material, toxins or radionuclides. One of the key benefits is the absence of a sash, which is an advantage when placing instruments and equipment inside. This cabinet also known as Laminar Air Flow Cabinet. Special Features:- Durable & cost effective Fluorescent tube light HEPA filter /ULPA filters that allows unidirectional air flow preventing recirculation of molecules. No gaps and joints to prevent accumulation of germs. Air filters made up of mini plated non-woven fabric. Balanced motor static as well as dynamic 99.997% efficiency at 0.3 µ particle Transparent Front Door (5mm) Static Pressure Manometer Built in U.V. Germicidal Light Conforms to US Federal Standard 209 B Microprocessor based controls Aesthetically designed-Designed according to the standards and principles underlining industry’s aesthetic values. Corrosion Resistant interior and exteriors-Corrosion resistant coatings like epoxy coatings are applied inside and outside the laminar air flow to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents. Energy Efficient – Cleanzar's laminar air flow uses less energy to provide the same level of performance, comfort and convenience, thus making it energy conserving. Sturdy Construction–laminar air flow are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments. Technical Specification:- Construction Details - Our modular units are fabricated of industrial grade PCRC body with stainless steel grade SS-304 Working Table . The interior & exterior portion painted with epoxy paint coating for extra-long life. The side panels made glass sheets are mounted on anodized aluminum frames. Noise Level - These laminar air flow units are designed to ensure minimum possible noise and vibration levels. Illumination - The fluorescent light housing is externally mounted to provide optimum lighting into the work area. The acrylic top and side panels allow for additional ambient light and visibility into the work area. Filter Assembly Laminar air flows are fitted with fully washable synthetic pre-filter units and secondary high efficiency air filters made of mini pleated non-woven fabric. The efficiency of filters have a rating of better than 99.99% at DOP (cold) and 99.97% at DOP (Hot). Filter units have the capacity to hold all suspended particles of size greater than 0.3 micron.
