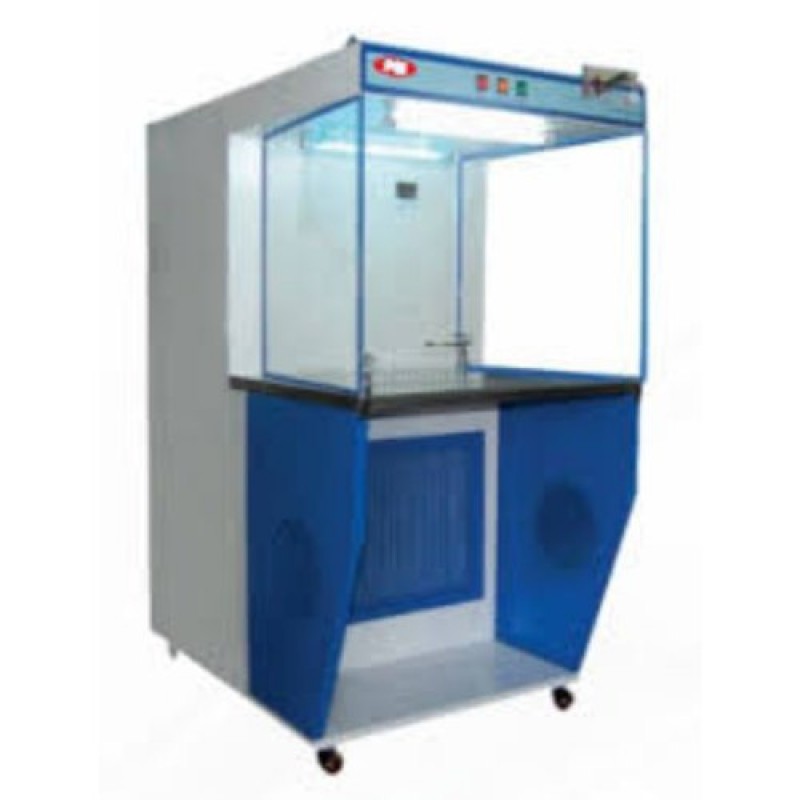

Horizontal Laminar Airflow
Product Details :
Type | Horizontal |
Material | MS |
Surface Finish | Powder Coated |
Voltage | 230V |
Noise Level | Less than 67 db on Scale 'A' When Ambient sound Level is not Greater than 57 db on Scale 'A' |
Efficiency | 50HZ |
Air Cleanliness | Class ISO - 5 (as per ISO -14644 -1). |
Vibration Level | Minimum. |
Motor Blower Assembly | Induction Motor with Centrifugal Blower Statically and Dynamically balanced with Suitable Rating and |
Material Grade | SS304 |
Air Flow Rate | 0.45 +- 0.05mps. or 90 FPM +- 10 FPM |
Illumination Of Light | Minimum 800 Lux |
Supply HEPA Filter | HEPA Filter efficiency 99.97% 0.3 Micron |
Pre Filter | Pre Filter With Micro Glass Fibre Media of 5 Micron |
U.V. Light | U.V. Light For Sterilization |
Other Details :
Horizontal Laminar Airflow System ideal for Microbiological manipulation, work bio-assays, sterility testing and research work; Vial filling and bunging operation in parenteral units and general dry processing work in semi-conductor manufacture and Tissue culture work. Horizontal Laminar Airflow (unidirectional Airflow) is an confined area moving in a uniform velocity along parallel flow lines. A continuous wash of HEPA/ULPA filtered Air moving horizontally across the work area. The uniform steam of air filtered air moves forward over the work surface from the rear of the work area. The airflow across the work area directly at the user and exhausts into the surrounding area.
